HQ180C 180HP 4WD Tractor – TC Chassis

TC Chassis – Heavy-Duty Reinforced Structure & High Strength The TC chassis tractor is designed and manufactured with a strong structure, using high-strength materials and advanced technology to withstand large loads and impacts. The reinforced frame delivers exceptional rigidity and durability for the most demanding heavy-duty operations.

High-Power 6-Cylinder Engine & Stable Power Output Matched with an 180 HP 6-cylinder diesel engine from mainstream brands (YTO, Xichai, Yunnei or customer-specified), it delivers stable and consistent power output. Suitable for heavy-duty operations such as deep subsoiling, deep ploughing, and general farmland work like rotary tillage.

Cost-Effective & Versatile Heavy-Duty Configuration Compared with international famous brands, this tractor offers advantageous pricing with reliable performance quality, delivering high cost-performance. Equipped with 4-wheel drive, hydraulic power steering, A/C cabin, optional 16F+16R gears and rich optional parts, it is ideal for farmers and agricultural production enterprises seeking heavy-duty capability at a competitive price.

TC/TF Chassis Tractor Configurator
Tractor Model HQ180C
Horse Power & Chassis Type 180 Hp / TC Chassis
Wheel Drive 4 x 4
Dimension 5400 x 2900 x 3150 mm
Wheel Base 2820 mm
Wheel Track Front: 1865~2015 mm, Rear: 1700~2300 mm
Ground Clearance 410 mm (front axle bottom)
Weight 6900 kgs
Front Ballast and Rear Ballast 60kg x 13 / 60kg x 4
Roll Bar and Roof A/C + Warm Wind + Fan + Reverse Image
Engine Information
Engine Brand and Model YTO / Xichai / Yunnei or specified brands
Emission China Ⅱ
Engine Type Water‑cooled, Inline, Four‑stroke, Direct injection
Cylinder Number 6
Rated Power and Speed 132.5 kw, 2200 r/min
Steer Device, Transmission and Drive Device
Steer Hydraulic Power
Gear Shift and Transmission 16F+8R / 16F+16R
Clutch Double Stage
Tire 18.4‑38 / 14.9‑28 Inch
Work Device
Three Point Hitch Position Back, Ⅲ Type, Stronger
Hitch Lift Device 2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve 3 Groups, 6 Valves Total
PTO 8 Splines / 21 Splines, 540 / 1000 rpm
Traction U Type
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity for 2 tractors with cabs
Optional
Optional items Radial tyre
Air Brake System
Upgrade 16+16 gears
Addition of hydraulic output port
Craft Wheel Packaging





HQ200C 200HP 4WD Tractor – TC Chassis

TC Chassis – Heavy-Duty Reinforced Structure & High Strength The TC chassis tractor is designed and manufactured with a strong structure, using high-strength materials and advanced technology to withstand large loads and impacts. The reinforced frame delivers exceptional rigidity and durability for the most demanding heavy-duty operations at the 200 HP power level.

High-Power 6-Cylinder Engine & Stable Power Output Matched with a 200 HP 6-cylinder diesel engine from mainstream brands (YTO, Xichai, Yunnei or customer-specified), it delivers maximum stable and consistent power output. Suitable for the most demanding heavy-duty operations such as deep subsoiling, deep ploughing, and hauling large-scale implements.

Cost-Effective & Versatile Heavy-Duty Configuration Compared with international famous brands, this flagship tractor offers advantageous pricing with reliable performance quality, delivering high cost-performance. Equipped with 4-wheel drive, hydraulic power steering, A/C cabin, optional 16F+16R gears and rich optional parts, it is the ideal choice for large-scale agricultural production enterprises seeking maximum heavy-duty capability.

HQ2204S 220HP 4WD Tractor – TS Chassis

TS Chassis – Efficient Power Transmission & Strong Traction The TS chassis structure transmits engine power efficiently, giving the tractor strong traction in a variety of operating environments. Matched with a 220 HP 6-cylinder diesel engine from mainstream brands, it delivers consistent high torque for the most demanding heavy-duty agricultural operations.

Sturdy Rear Axle & Stable Operation on Rough Terrain Its sturdy rear axle structure ensures a stable ride and operation, with smooth performance even in rough terrain, reducing the impact of bumps. The 3000mm extended wheelbase and heavy-duty 9150kg weight provide exceptional stability during deep ploughing, subsoiling and hauling large implements.

Comfortable Cab Design & Heavy-Duty Versatile Configuration The rational cab layout and user-friendly design provide a comfortable operating space, with a comfortable and adjustable seat to reduce driver fatigue after long hours of driving. Equipped with 4-wheel drive, hydraulic power steering, A/C cabin, radial tyres and rich optional parts, it is ideal for large-scale agricultural production enterprises.

TS Chassis Tractor Configurator
Tractor Model HQ2204S
Horse Power & Chassis Type 220 Hp / TS Chassis
Wheel Drive 4 x 4
Dimension 5700 x 2800 x 3350 mm
Wheel Base 3000 mm
Wheel Track Front: 1830~1990 mm, Rear: 1700~2790 mm
Ground Clearance 410 mm (front axle bottom)
Weight 9150 kgs
Front Ballast and Rear Ballast 74kg x 15 / 60kg x 4
Roll Bar and Roof A/C + Warm Wind + Fan + Reverse Image
Engine Information
Engine Brand and Model YTO / Xichai / Yunnei or specified brands
Emission China Ⅱ
Engine Type Water‑cooled, Inline, Four‑stroke, Direct injection
Cylinder Number 6
Rated Power and Speed 162.0 kw
Steer Device, Transmission and Drive Device
Steer Hydraulic Power
Gear Shift and Transmission 32F+32R / 16F+16R
Clutch Double Stage
Tire Front: 540‑65R28, Rear: 650‑65R38 radial tyre
Work Device
Three Point Hitch Position Back, Ⅲ Type, Stronger
Hitch Lift Device 2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve 3 Groups, 6 Valves Total
PTO 8 Splines / 21 Splines, 540 / 1000 rpm
Traction U Type
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity for 2 tractors with cabs
Optional
Optional items 16.9‑28 / 20.08‑38 tyres
Upgrade 32+32 gears
Air Brake System
Addition of hydraulic output port
Craft Wheel Packaging



HQ2404S 240HP 4WD Tractor – TS Chassis

TS Chassis – Efficient Power Transmission & Strong Traction The TS chassis structure transmits engine power efficiently, giving the tractor strong traction in a variety of operating environments. Matched with a 240 HP 6-cylinder diesel engine from mainstream brands, it delivers consistent high torque for the most demanding heavy-duty agricultural operations.

Sturdy Rear Axle & Stable Operation on Rough Terrain Its sturdy rear axle structure ensures a stable ride and operation, with smooth performance even in rough terrain, reducing the impact of bumps. The 3000mm extended wheelbase and heavy-duty 9200kg weight provide exceptional stability during deep ploughing, subsoiling and hauling large implements.

Comfortable Cab Design & Heavy-Duty Versatile Configuration The rational cab layout and user-friendly design provide a comfortable operating space, with a comfortable and adjustable seat to reduce driver fatigue after long hours of driving. Equipped with 4-wheel drive, hydraulic power steering, A/C cabin, radial tyres and rich optional parts, it is ideal for large-scale agricultural production enterprises.

TS Chassis Tractor Configurator
Tractor Model HQ2404S
Horse Power & Chassis Type 240 Hp / TS Chassis
Wheel Drive 4 x 4
Dimension 5700 x 2800 x 3350 mm
Wheel Base 3000 mm
Wheel Track Front: 1830~1990 mm, Rear: 1700~2790 mm
Ground Clearance 410 mm (front axle bottom)
Weight 9200 kgs
Front Ballast and Rear Ballast 74kg x 15 / 60kg x 4
Roll Bar and Roof A/C + Warm Wind + Fan + Reverse Image
Engine Information
Engine Brand and Model YTO / Xichai / Yunnei or specified brands
Emission China Ⅱ
Engine Type Water‑cooled, Inline, Four‑stroke, Direct injection
Cylinder Number 6
Rated Power and Speed 176.5 kw
Steer Device, Transmission and Drive Device
Steer Hydraulic Power
Gear Shift and Transmission 32F+32R / 16F+16R
Clutch Double Stage
Tire Front: 540‑65R28, Rear: 650‑65R38 radial tyre
Work Device
Three Point Hitch Position Back, Ⅲ Type, Stronger
Hitch Lift Device 2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve 3 Groups, 6 Valves Total
PTO 8 Splines / 21 Splines, 540 / 1000 rpm
Traction U Type
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity for 2 tractors with cabs
Optional
Optional items 16.9‑28 / 20.08‑38 tyres
Upgrade 32+32 gears
Air Brake System
Addition of hydraulic output port
Craft Wheel Packaging



HQ2604S 260HP 4WD Tractor – TS Chassis

TS Chassis – Efficient Power Transmission & Strong Traction The TS chassis structure transmits engine power efficiently, giving the tractor strong traction in a variety of operating environments. Matched with a flagship 260 HP 6-cylinder diesel engine from mainstream brands, it delivers maximum high torque for the most demanding heavy-duty agricultural operations.

Sturdy Rear Axle & Stable Operation on Rough Terrain Its sturdy rear axle structure ensures a stable ride and operation, with smooth performance even in rough terrain, reducing the impact of bumps. The 3000mm extended wheelbase and heavy-duty 9250kg weight provide exceptional stability during the deepest ploughing, heavy subsoiling and hauling the largest implements.

Comfortable Cab Design & Heavy-Duty Versatile Configuration The rational cab layout and user-friendly design provide a comfortable operating space, with a comfortable and adjustable seat to reduce driver fatigue after long hours of driving. Equipped with 4-wheel drive, hydraulic power steering, A/C cabin, radial tyres and rich optional parts including 32+32 gears upgrade, it is the flagship choice for the largest-scale agricultural production enterprises.

TS Chassis Tractor Configurator
Tractor Model HQ2604S
Horse Power & Chassis Type 260 Hp / TS Chassis
Wheel Drive 4 x 4
Dimension 5700 x 2800 x 3350 mm
Wheel Base 3000 mm
Wheel Track Front: 1830~1990 mm, Rear: 1700~2790 mm
Ground Clearance 410 mm (front axle bottom)
Weight 9250 kgs
Front Ballast and Rear Ballast 74kg x 15 / 60kg x 4
Roll Bar and Roof A/C + Warm Wind + Fan + Reverse Image
Engine Information
Engine Brand and Model YTO / Xichai / Yunnei or specified brands
Emission China Ⅱ
Engine Type Water‑cooled, Inline, Four‑stroke, Direct injection
Cylinder Number 6
Rated Power and Speed > 191.2 kw
Steer Device, Transmission and Drive Device
Steer Hydraulic Power
Gear Shift and Transmission 32F+32R / 16F+16R
Clutch Double Stage
Tire Front: 540‑65R28, Rear: 650‑65R38 radial tyre
Work Device
Three Point Hitch Position Back, Ⅲ Type, Stronger
Hitch Lift Device 2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve 3 Groups, 6 Valves Total
PTO 8 Splines / 21 Splines, 540 / 1000 rpm
Traction U Type
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity for 2 tractors with cabs
Optional
Optional items 16.9‑28 / 20.08‑38 tyres
Upgrade 32+32 gears
Air Brake System
Addition of hydraulic output port
Craft Wheel Packaging



HQD120 12HP 2WD Tractor – Single Cylinder

Single-Cylinder Engine – High Torque at Low Speed Although the engine has only one cylinder, it features larger displacement and compression ratio, delivering high torque during low-speed heavy-load operations. The 12 HP horizontal water-cooled direct-injection diesel engine provides reliable and efficient power for small-scale farming tasks.

Simple Structure – Low Cost & Easy Maintenance Its structure is simple with fewer parts, resulting in low manufacturing cost, low failure probability and easy maintenance. Ordinary users can perform basic maintenance after simple training, making it highly cost-effective for smallholder farmers and entry-level agricultural operations.

Multi-Functional & Versatile Implement Compatibility This single-cylinder tractor can be equipped with various agricultural implements to achieve multiple operational functions, meeting the needs of all segments of agricultural production. With standard three-point hitch and optional PTO, hydraulic lift and hydraulic output, it is a truly multi-functional agricultural machinery for small farms.

Single-cylinder tractor configuration table
Tractor Model HQD120
Wheel Drive 2-wheel drive
Dimension 2760 x 1170 x 1700 mm / 2760 x 1410 x 1700 mm
Wheel Base 1400 / 1500 mm
Wheel Track Front wheelbase 900 / 1140 / 1240 mm
Ground Clearance 245 / 295 / 315 / 335 / 365 mm
Weight 920 kgs
Front Ballast and Rear Ballast Have (standard)
Roll Bar and Roof Optional
Engine Information
Engine Brand and Model Changzhou diesel engine or specified brand diesel engine
Emission China Ⅱ
Engine Type Single cylinder, Horizontal, Water-cooled, Four stroke, Direct injection
Cylinder Number 1
Rated Power and Speed 8.8 kw, 2200 r/min
Steer Device, Transmission and Drive Device
Steer Mechanical steering
Gear Shift and Transmission 6F+1R
Clutch Single-acting
Tire Rear 7.50-20 / Front 4.0-12
Work Device
Three Point Hitch Position Have (standard)
Hitch Lift Device Optional
Hydraulic Output Valve Optional
PTO Optional
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity 20 units
Optional
Optional items Upgraded 4WD system
Upgraded enclosed cab
Air Brake System
Power take-off shaft
Upgraded 1.2 metre wheel base
Upgraded 1.3 metre wheel base
Upgrade Hood
Addition of hydraulic output port
Installation of awnings
Upgrade 9.5-20 / 4.5-14 tyres
Upgrade 9.5-24 / 5.5-16 tyres
Iron Shelf Packaging



HQD150 15HP 2WD Tractor – Single Cylinder

Single-Cylinder Engine – High Torque at Low Speed Although the engine has only one cylinder, it features larger displacement and compression ratio, delivering high torque during low-speed heavy-load operations. The 15 HP horizontal water-cooled direct-injection diesel engine provides reliable and efficient power for small to medium-scale farming tasks.

Simple Structure – Low Cost & Easy Maintenance Its structure is simple with fewer parts, resulting in low manufacturing cost, low failure probability and easy maintenance. Ordinary users can perform basic maintenance after simple training, making it highly cost-effective for smallholder farmers and entry-level agricultural operations.

Multi-Functional & Versatile Implement Compatibility This single-cylinder tractor can be equipped with various agricultural implements to achieve multiple operational functions, meeting the needs of all segments of agricultural production. With standard three-point hitch and optional PTO, hydraulic lift and hydraulic output, it is a truly multi-functional agricultural machinery for small farms.

Single-cylinder tractor configuration table
Tractor Model HQD150
Wheel Drive 2-wheel drive
Dimension 2760 x 1170 x 1700 mm / 2760 x 1410 x 1700 mm
Wheel Base 1400 / 1500 mm
Wheel Track Front wheelbase 900 / 1140 / 1240 mm
Ground Clearance 245 / 295 / 315 / 335 / 365 mm
Weight 930 kgs
Front Ballast and Rear Ballast Have (standard)
Roll Bar and Roof Optional
Engine Information
Engine Brand and Model Changzhou diesel engine or specified brand diesel engine
Emission China Ⅱ
Engine Type Single cylinder, Horizontal, Water-cooled, Four stroke, Direct injection
Cylinder Number 1
Rated Power and Speed 11.0 kw, 2200 r/min
Steer Device, Transmission and Drive Device
Steer Mechanical steering
Gear Shift and Transmission 6F+1R
Clutch Single-acting
Tire Rear 7.50-20 / Front 4.0-12
Work Device
Three Point Hitch Position Have (standard)
Hitch Lift Device Optional
Hydraulic Output Valve Optional
PTO Optional
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity 20 units
Optional
Optional items Upgraded 4WD system
Upgraded enclosed cab
Air Brake System
Power take-off shaft
Upgraded 1.2 metre wheel base
Upgraded 1.3 metre wheel base
Upgrade Hood
Addition of hydraulic output port
Installation of awnings
Upgrade 9.5-20 / 4.5-14 tyres
Upgrade 9.5-24 / 5.5-16 tyres
Iron Shelf Packaging

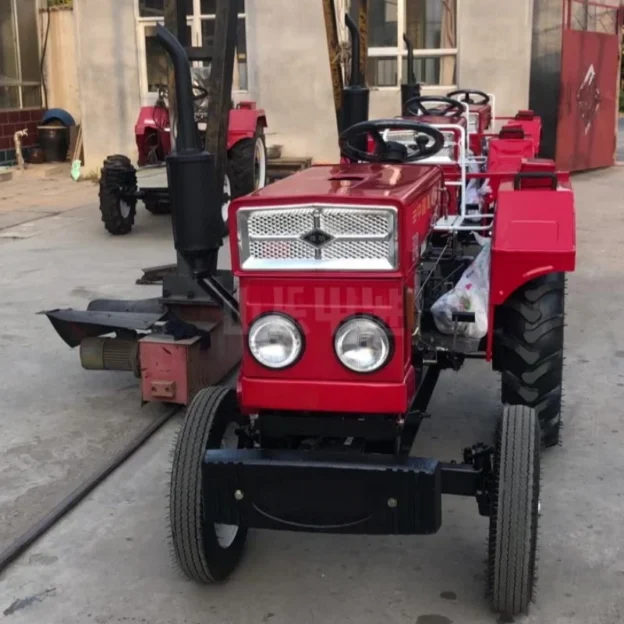

HQD180 18HP 2WD Tractor – Single Cylinder

Single-Cylinder Engine – High Torque at Low Speed Although the engine has only one cylinder, it features larger displacement and compression ratio, delivering high torque during low-speed heavy-load operations. The 18 HP horizontal water-cooled direct-injection diesel engine provides reliable and efficient power for medium-scale farming tasks.

Simple Structure – Low Cost & Easy Maintenance Its structure is simple with fewer parts, resulting in low manufacturing cost, low failure probability and easy maintenance. Ordinary users can perform basic maintenance after simple training, making it highly cost-effective for smallholder farmers and entry-level agricultural operations.

Multi-Functional & Versatile Implement Compatibility This single-cylinder tractor can be equipped with various agricultural implements to achieve multiple operational functions, meeting the needs of all segments of agricultural production. With standard three-point hitch and optional PTO, hydraulic lift and hydraulic output, it is a truly multi-functional agricultural machinery for small to medium farms.

Single-cylinder tractor configuration table
Tractor Model HQD180
Wheel Drive 2-wheel drive
Dimension 2760 x 1170 x 1700 mm / 2760 x 1410 x 1700 mm
Wheel Base 1400 / 1500 mm
Wheel Track Front wheelbase 900 / 1140 / 1240 mm
Ground Clearance 245 / 295 / 315 / 335 / 365 mm
Weight 940 kgs
Front Ballast and Rear Ballast Have (standard)
Roll Bar and Roof Optional
Engine Information
Engine Brand and Model Changzhou diesel engine or specified brand diesel engine
Emission China Ⅱ
Engine Type Single cylinder, Horizontal, Water-cooled, Four stroke, Direct injection
Cylinder Number 1
Rated Power and Speed 13.23 kw, 2200 r/min
Steer Device, Transmission and Drive Device
Steer Mechanical steering
Gear Shift and Transmission 6F+1R
Clutch Single-acting
Tire Rear 7.50-20 / Front 4.0-12
Work Device
Three Point Hitch Position Have (standard)
Hitch Lift Device Optional
Hydraulic Output Valve Optional
PTO Optional
Manufacture Factory
Manufacturer Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference 40HQ Capacity 20 units
Optional
Optional items Upgraded 4WD system
Upgraded enclosed cab
Air Brake System
Power take-off shaft
Upgraded 1.2 metre wheel base
Upgraded 1.3 metre wheel base
Upgrade Hood
Addition of hydraulic output port
Installation of awnings
Upgrade 9.5-20 / 4.5-14 tyres
Upgrade 9.5-24 / 5.5-16 tyres
Iron Shelf Packaging



Can Your Crawler-Type Mini Tiller Support Quick Tool Replacement?

While many crawler-type mini tillers on the market have received positive feedback from farmers for their performance, switching between functions like rotary tillage and ditching often requires disassembling the gearbox—a cumbersome process that typically can’t be done by one person alone.

This hassle is now a thing of the past. Our Allian Agri crawler-type mini tillers are equipped with a self-developed gearbox, refined through countless tests and improvements.

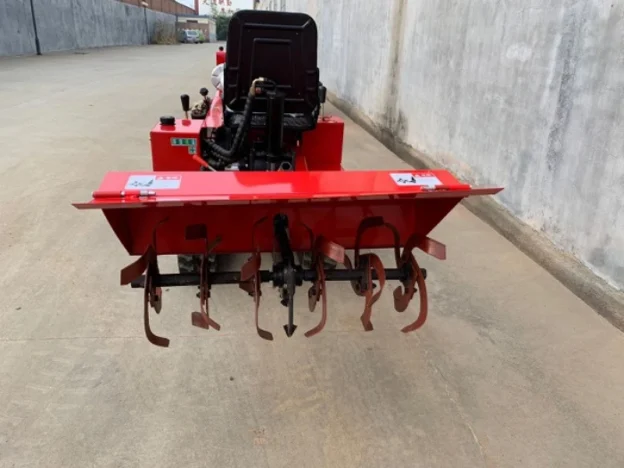

For rotary tillage, users simply shift the tool lever to the rotary tillage position and attach the rotary blade directly to the gearbox output shaft—no gearbox disassembly needed. After the soil is tilled and turned, just switch the lever to the ditching position, remove the rotary blade, and install the ditching blade to start ditching immediately. The entire process skips gearbox disassembly entirely, saving time and effort.

Additionally, our crawler-type mini tillers feature two speed settings (high and low) for rotary tillage, catering to diverse soil cultivation needs.

If you’re interested, feel free to contact us—we’ll be happy to provide the most suitable crawler-type mini tiller for your needs.
