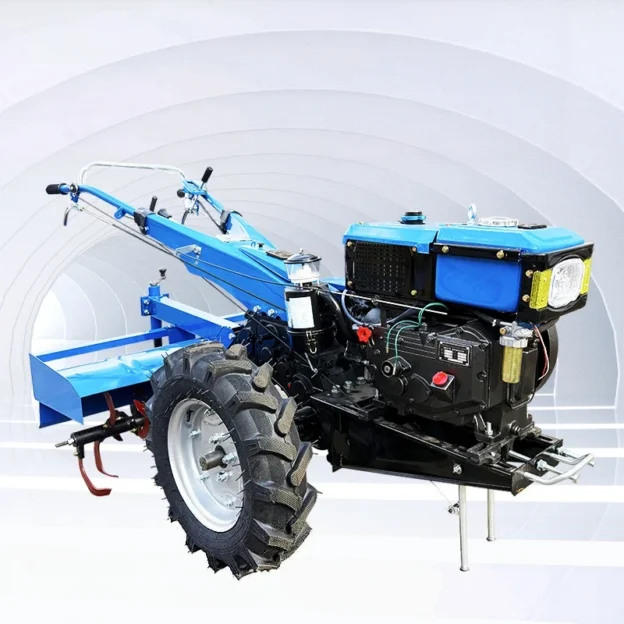

HQ121 15‑18HP Walking Tractor 121 Chassis

121 Chassis‑Enhanced Reliability & High Adaptability The 121 chassis walking tractor adopts reinforced mechanical structure, higher reliability for heavy‑load work. It performs well in hilly land, terraces and ordinary farmland with flexible hand‑held operation.

Single‑Friction Disc Clutch & Sturdy Gearbox Equipped with single friction disc clutch and 6F‑2R transmission. Stable shifting performance, improved anti‑overload capability, fit for long‑time field farming. Electric start available as optional upgrade.

Upgraded Power & Rich Implement Compatibility Powered by 15‑18HP Changzhou or alternative diesel engines. This walk‑behind tractor can couple with plough, harrow, seeder, reaper and other farm tools, finish most kinds of farmland operation tasks.

Walking tractor configuration parameters
Tractor Model	HQ121
Chassis Type	121 Chassis
Matchable engines	1100 / 1105
Tractor form	Single‑axis towable driveable
Dimension	2180×860×1250 mm
Gear Shift and Transmission	6F‑2R
Activation method	Hand crank / Electric start optional
Wheel Base(mm)	640‑860 mm
Ground Clearance	220 mm
Weight	260 kgs
Engine Information
Engine Brand and Model	Changzhou diesel engine or other brands of diesel engines
Cooling form	Water‑cooled evaporative
Emission	China Ⅱ
Engine Type	Single cylinder, horizontal, 4‑stroke
Rated Power and Speed	2300 r/min
Clutch	Single friction disc
Tire	6.00‑12 Herringbone pattern
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
40HQ packing volume(set)	70 walk‑behind tractors
Optional
Optional items	Condensing Heat Dissipation
	3 triangular belts
	Wooden box packaging
	External generator charging in cold areas
	Tractor headlights

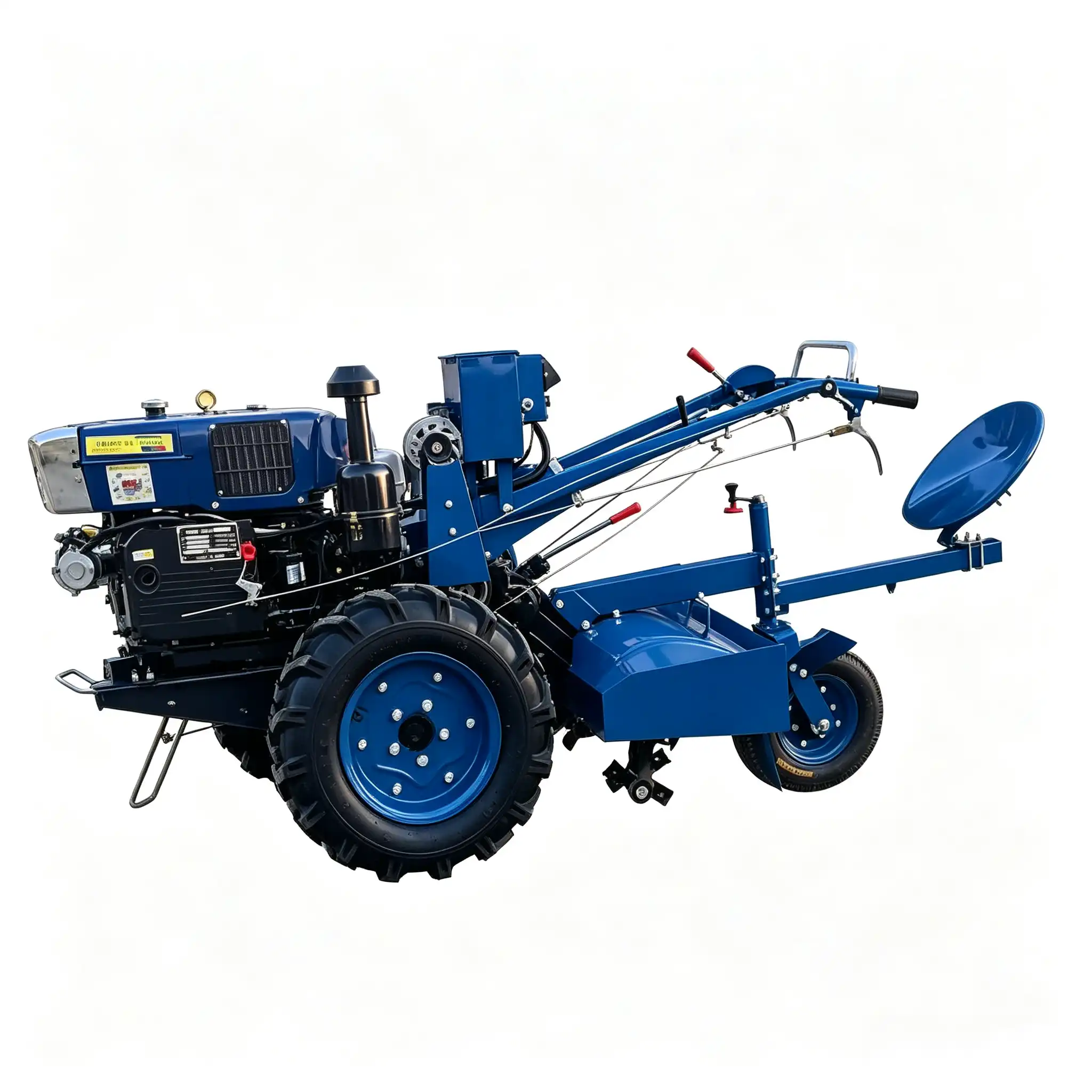

HQ151 20‑22HP Walking Tractor 151 Chassis

发表评论

151 Chassis‑Heavy‑Duty & Stable Performance The heavy‑duty 151 chassis walking tractor features thicker structural parts, great stability under heavy working loads. Ideal for larger smallholdings, terraced land and various complex farm working scenarios.

Single‑Friction Disc Clutch & Heavy‑Duty Gearbox Equipped with single friction disc clutch and 6F‑2R transmission. Strong anti‑overload capability, durable for long‑time heavy‑duty field farming work. Electric start is available as optional upgrade.

Max Power & Full Implement Compatibility Delivering 20‑22HP with Changzhou or alternative diesel engines. This heavy‑duty walk‑behind tractor can be fitted with plough, harrow, planter, reaper and more implements for complete farm operation workflows.

Walking tractor configuration parameters
Tractor Model	HQ151
Chassis Type	151 Chassis
Matchable engines	1110 /1115
Tractor form	Single‑axis towable driveable
Dimension	2600×960×1250 mm
Gear Shift and Transmission	6F‑2R
Activation method	Hand crank / Electric start optional
Wheel Base(mm)	640‑860 mm
Ground Clearance	220 mm
Weight	375 kgs
Engine Information
Engine Brand and Model	Changzhou diesel engine or other brands of diesel engines
Cooling form	Water‑cooled evaporative
Emission	China Ⅱ
Engine Type	Single cylinder, horizontal, 4‑stroke
Rated Power and Speed	2300 r/min
Clutch	Single friction disc
Tire	6.00‑12 Herringbone pattern
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
40HQ packing volume(set)	70 walk‑behind tractors
Optional
Optional items	Condensing Heat Dissipation
	3 triangular belts
	Wooden box packaging
	External generator charging in cold areas
	Tractor headlights

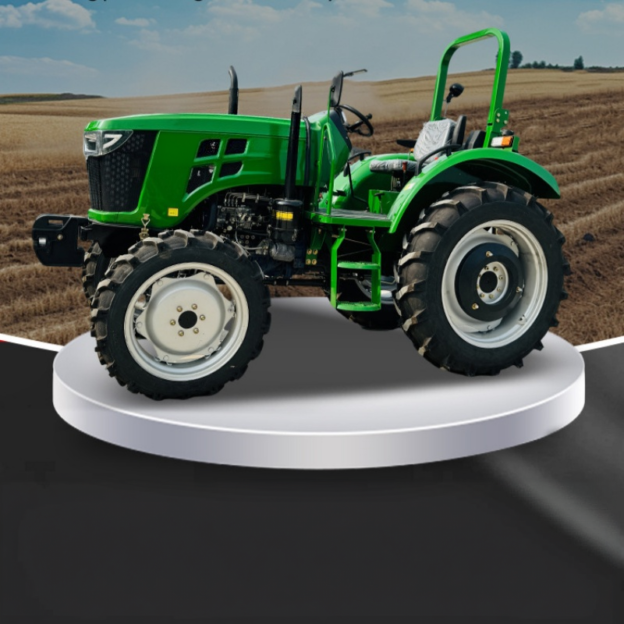

HQ504DR 50HP 4WD Tractor – Deere 3B Chassis

发表评论

Deere 3B Chassis – Helical Gear & Smooth Transmission The Ningbo 3B chassis is designed by John Deere of USA, suitable for 50 HP engine. The helical gear tooth shape makes tooth-to-tooth contact gradual rather than instantaneous, delivering smoother and more continuous transmission while reducing vibration and noise.

12F+12R Shuttle Shift & Double Stage Clutch Equipped with 12 forward + 12 reverse gears (3+3)×2×2 and double-acting clutch. Stable shifting performance, strong anti-overload capability, suitable for long-time field operation across dry farmland, wet paddy fields and rugged mountain areas.

Flexible Power & Versatile Configuration This model supports 50 HP diesel engines from mainstream brands (YTO, Xichai, Yunnei or customer-specified). Matched with 4-wheel drive, hydraulic power steering and rich optional parts, it adapts to diverse operating environments and working conditions with reliable durability.

Tractor Information
Tractor Model	HQ540DR
Horse Power & Chassis Type	50 Hp
Wheel Drive	4 × 4
Dimension	5700x1500x2100 mm
Wheel Base	1980‑2070 mm
Wheel Base(Tyre)	960‑1500 mm
Ground Clearance	355 mm
Weight	1810 kgs
Front Ballast and Rear Ballast	Havel(标配)
Roll Bar and Roof	Havel(标配)
Engine Information
Engine Brand and Model	YTO / Xichai / Yunnei or specified brands
Emission	China Ⅱ
Engine Type	Water‑cooled, inline, Four‑stroke, Direct injection
Cylinder Number	4
Rated Power and Speed	36.5 kw, 2300 r/min
Steer Device, Transmission
Steer	Hydraulic Power
Gear Shift and Transmission	12F‑12R, (3+3)×2‑2
Clutch	Double Stage
Tyre	11.2‑24 6.0‑16 Inch
Work Device
Three Point Hitch Position	Back, I Type, Stronger
Hitch Lift Device	2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve	2 Groups,4 Valves Total
PTO	6 Splines, 540/720 rpm
Traction	U Type
Manufacture Factory
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference	40HQ Holds 13 tractors, requires steel frame packaging

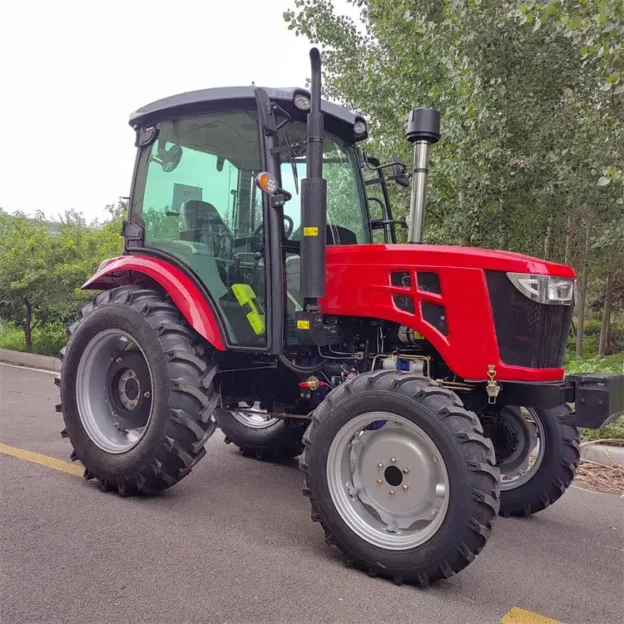

HQ604DR 60HP 4WD Tractor – Deere 3B Chassis

发表评论

Tractor Information
Tractor Model	HQ604DR
Horse Power & Chassis Type	60 Hp
Wheel Drive	4 × 4
Dimension	5700x1500x2100 mm
Wheel Base	1980‑2070 mm
Wheel Base(Tyre)	960‑1500 mm
Ground Clearance	355 mm
Weight	1820 kgs
Front Ballast and Rear Ballast	Havel(标配)
Roll Bar and Roof	Havel(标配)
Engine Information
Engine Brand and Model	YTO / Xichai / Yunnei or specified brands
Emission	China Ⅱ
Engine Type	Water‑cooled, inline, Four‑stroke, Direct injection
Cylinder Number	4
Rated Power and Speed	44.1 kw, 2300 r/min
Steer Device, Transmission
Steer	Hydraulic Power
Gear Shift and Transmission	12F‑12R, (3+3)×2‑2
Clutch	Double Stage
Tyre	11.2‑24 6.0‑16 Inch
Work Device
Three Point Hitch Position	Back, I Type, Stronger
Hitch Lift Device	2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve	2 Groups,4 Valves Total
PTO	6 Splines, 540/720 rpm
Traction	U Type
Manufacture Factory
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference	40HQ Holds 13 tractors, requires steel frame packaging

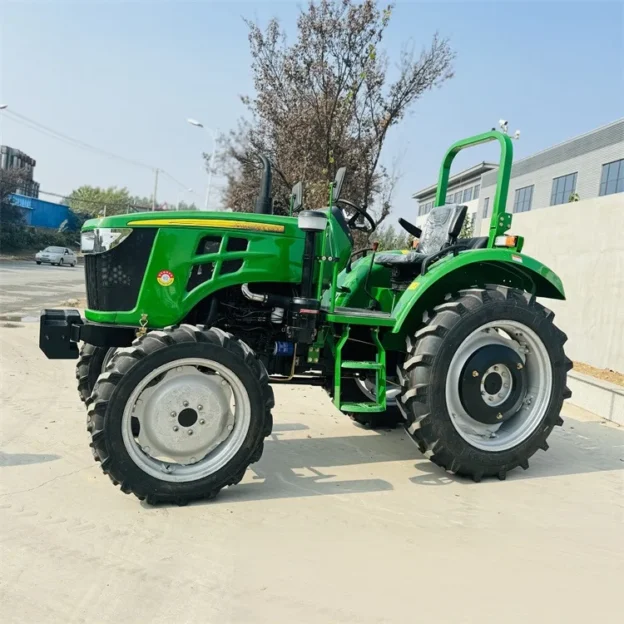

HQ704DR 70HP 4WD Tractor – Deere 3B Chassis

发表评论

Deere 3B Chassis – Helical Gear & Smooth Transmission The Ningbo 3B chassis is designed by John Deere of USA, suitable for 70 HP engine. The helical gear tooth shape makes tooth-to-tooth contact gradual rather than instantaneous, delivering smoother and more continuous transmission while reducing vibration and noise.

Flexible Power & Versatile Configuration This model supports 70 HP diesel engines from mainstream brands (YTO, Xichai, Yunnei or customer-specified). Matched with 4-wheel drive, hydraulic power steering and rich optional parts, it adapts to diverse operating environments and heavy-duty farm tasks with reliable durability.

Tractor Information
Tractor Model	HQ704DR
Horse Power & Chassis Type	70 Hp
Wheel Drive	4 × 4
Dimension	5700x1500x2100 mm
Wheel Base	1980‑2070 mm
Wheel Base(Tyre)	960‑1500 mm
Ground Clearance	355 mm
Weight	1830 kgs
Front Ballast and Rear Ballast	Havel(标配)
Roll Bar and Roof	Havel(标配)
Engine Information
Engine Brand and Model	YTO / Xichai / Yunnei or specified brands
Emission	China Ⅱ
Engine Type	Water‑cooled, inline, Four‑stroke, Direct injection
Cylinder Number	4
Rated Power and Speed	>51.5kw, 2300 r/min
Steer Device, Transmission
Steer	Hydraulic Power
Gear Shift and Transmission	12F‑12R, (3+3)×2‑2
Clutch	Double Stage
Tyre	11.2‑24 6.0‑16 Inch
Work Device
Three Point Hitch Position	Back, I Type, Stronger
Hitch Lift Device	2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve	2 Groups,4 Valves Total
PTO	6 Splines, 540/720 rpm
Traction	U Type
Manufacture Factory
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference	40HQ Holds 13 tractors, requires steel frame packaging

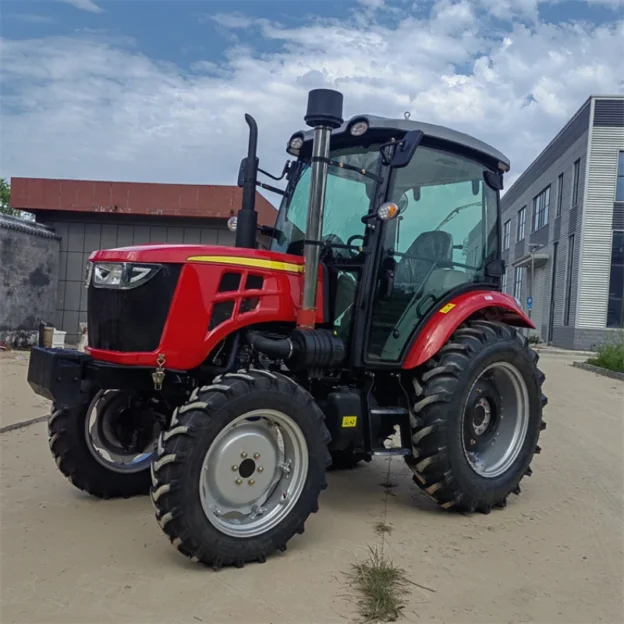

HQ804DR 80HP 4WD Tractor – Deere 3B Chassis

发表评论

Deere 3B Chassis – Helical Gear & Smooth Transmission The Ningbo 3B chassis is designed by John Deere of USA, suitable for 80 HP engine. The helical gear tooth shape makes tooth-to-tooth contact gradual rather than instantaneous, delivering smoother and more continuous transmission while reducing vibration and noise under heavy load.

12F+12R Shuttle Shift & Double Stage Clutch Equipped with 12 forward + 12 reverse gears (3+3)×2×2 and double-acting clutch. Stable shifting performance, strong anti-overload capability, suitable for long-time intensive field operation across dry farmland, wet paddy fields and rugged mountain areas.

Flexible Power & Versatile Configuration This model supports 80 HP high-output diesel engines from mainstream brands (YTO, Xichai, Yunnei or customer-specified). Matched with 4-wheel drive, hydraulic power steering and rich optional parts, it adapts to heavy-duty farm tasks and diverse operating environments with reliable durability.

Tractor Information
Tractor Model	HQ804DR
Horse Power & Chassis Type	80 Hp
Wheel Drive	4 × 4
Dimension	5700x1500x2100 mm
Wheel Base	1980‑2070 mm
Wheel Base(Tyre)	960‑1500 mm
Ground Clearance	355 mm
Weight	1880 kgs
Front Ballast and Rear Ballast	Havel(标配)
Roll Bar and Roof	Havel(标配)
Engine Information
Engine Brand and Model	YTO / Xichai / Yunnei or specified brands
Emission	China Ⅱ
Engine Type	Water‑cooled, inline, Four‑stroke, Direct injection
Cylinder Number	4
Rated Power and Speed	>58.8kw, 2300 r/min
Steer Device, Transmission
Steer	Hydraulic Power
Gear Shift and Transmission	12F‑12R, (3+3)×2‑2
Clutch	Double Stage
Tyre	11.2‑24 6.0‑16 Inch
Work Device
Three Point Hitch Position	Back, I Type, Stronger
Hitch Lift Device	2 Cylinders Hydraulic Power Lift
Hydraulic Output Valve	2 Groups,4 Valves Total
PTO	6 Splines, 540/720 rpm
Traction	U Type
Manufacture Factory
Manufacture Factory	Weifang Giant Agricultural Equipment Co., Ltd
Container loading plan reference	40HQ Holds 13 tractors, requires steel frame packaging

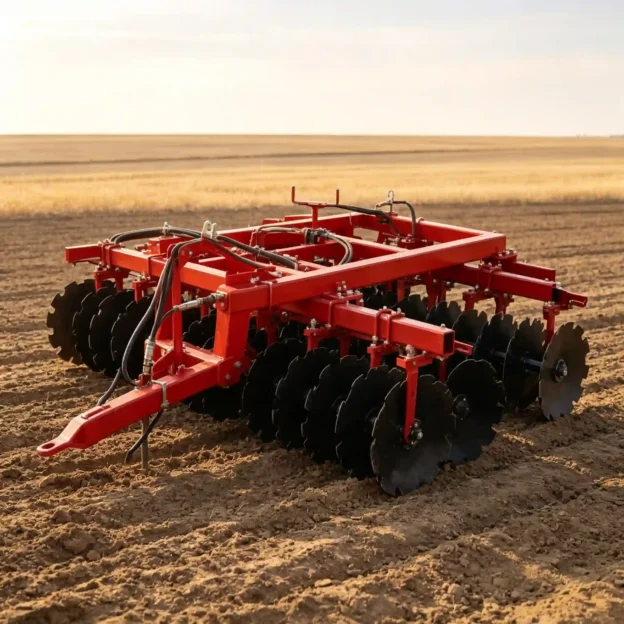

HEAVY DUTY HYDRAULIC DISC HARROW

发表评论

Offset Hydraulic Frame‑Heavy‑Duty Tillage Performance The 1BZ series hydraulic offset heavy disc harrow is engineered for demanding field conditions including heavy clay soil, wasteland and heavily weed‑infested plots. It performs stubble clearing before sowing, breaks compacted topsoil and incorporates chopped straw back into soil to improve soil fertility.

660mm Heavy‑Gauge Disc Blades‑Replace Plough for Primary Tillage Fitted with large‑size 660mm heavy‑gauge disc blades, this harrow efficiently crushes soil clods and levels ground surface. It can substitute plough for primary tillage on cultivated land, simplifying farming workflows and lowering overall operating costs.

Wide Model Range & Optional Sealed Bearing Assembly Multiple models cover working width from 1800mm to 5300mm, matching tractors from 70 HP up to 180 HP. Optional sealed bearing assembly greatly improves reliability against dust, mud and harsh working environment for extended service life.

Technical Specifications

Model	1BZ‑1.8	1BZ‑2.2	1BZ‑2.5	1BZ‑3.0	1BZ‑3.4	1BZ‑4.0	1BZ‑5.3
Working Width (mm)	1800	2200	2500	3000	3400	4000	5300
Working Depth (mm)	200	200	200	200	200	200	200
Disc Dia. (mm)	660	660	660	660	660	660	660
Disc Qty	16	20	24	28	32	36	48
Weight (kg)	1160	1250	1350	1430	1550	1900	2500
Tractor Power (hp)	70	80	90	100	120	150	180
Items Optional	Sealed Bearing Assembly

EXTRA HEAVY DISC HARROW

发表评论

Offset Hydraulic Frame‑Extra Heavy‑Duty Tillage Performance The 1BZLY series hydraulic trailed extra heavy disc harrow is engineered for demanding field conditions including heavy clay soil, wasteland and heavily weed‑infested plots. It performs stubble clearing before sowing, breaks compacted topsoil and incorporates chopped straw back into soil to improve soil fertility.

660mm Heavy‑Gauge Disc Blades‑Replace Plough for Primary Tillage Fitted with large‑size 660mm heavy‑gauge disc blades, this harrow efficiently crushes soil clods and levels ground surface. It can substitute plough for primary tillage on cultivated land, simplifying farming workflows and lowering overall operating costs.

Multiple Model Range & Optional Bearing Assembly Multiple models cover working width from 2000mm to 3400mm, matching tractors from 80 HP up to 140 HP. Optional 38mm round shaft oil bearing assembly or 40mm square shaft grease bearing assembly greatly improves reliability against dust, mud and harsh working environment for extended service life.

Technical Specifications

Model	1BZLY‑2.0	1BZLY‑2.2	1BZLY‑2.5	1BZLY‑Y3.0	1BZLY‑3.4
Working Width (mm)	2000	2200	2500	3000	3400
Working Depth (mm)	180‑220	180‑220	180‑220	180‑220	180‑220
Disc Dia. (mm)	660	660	660	660	660
Disc Qty	18	20	24	28	32
Weight (kg)	1600	1780	1950	2100	2500
Tractor Power (hp)	80	90	110	120	140
Items Optional	38mm Round Shaft With Oil Bearing or 40mm Square Shaft with Grease Bearing

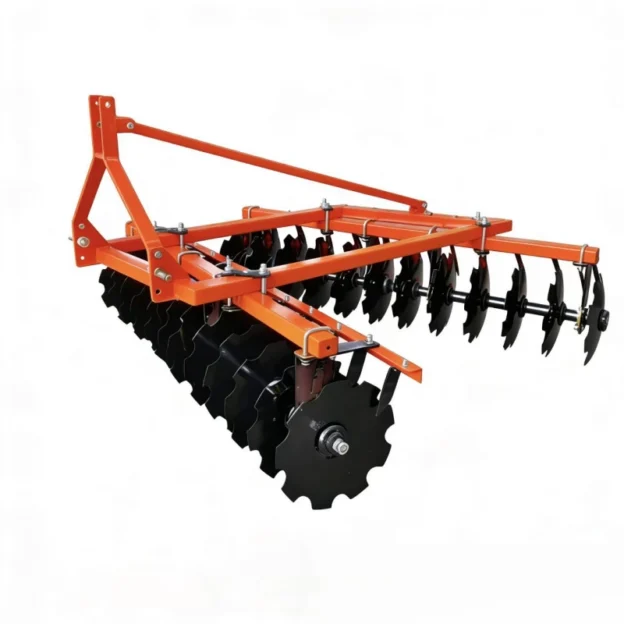

MOUNTED LIGHT DUTY DISC HARROW

发表评论

Compact Mounted Frame‑Light‑Duty Tillage Performance The 1BQX series mounted light‑duty disc harrow fits light soil farm operations. It handles post‑plough clod breaking, pre‑sowing land preparation, soil loosening and soil‑fertilizer mixing for general farmland.

460mm Standard Disc Blades‑Simple & Robust Structure Equipped with 460mm disc blades, this harrow breaks clods efficiently and levels field surface. With rational structure, solid build and easy maintenance, it delivers smooth tillage results for light soil.

Wide Model Range & Two Hitch Categories Multiple models cover working width from 1100mm to 2300mm, matching tractors from 15 HP up to 60 HP. Supports Cat I and Cat II 3‑point mounting to adapt different tractor types.

Technical Specifications

Model	1BQX‑1.1	1BQX‑1.3	1BQX‑1.5	1BQX‑1.7	1BQX‑1.9	1BQX‑2.3
Working Width (mm)	1100	1300	1500	1700	1900	2300
Working Depth (mm)	120	120	120	120	120	120
Disc Dia. (mm)	460	460	460	460	460	460
Disc Qty	12	14	16	18	20	24
Weight (kg)	200	220	240	260	310	360
Tractor Power (hp)	15	18	25	40	50	60
Linkage	Mounted Cat I			Mounted Cat II
