HEAVY DUTY HYDRAULIC DISC HARROW

发表评论

Offset Hydraulic Frame‑Heavy‑Duty Tillage Performance The 1BZ series hydraulic offset heavy disc harrow is engineered for demanding field conditions including heavy clay soil, wasteland and heavily weed‑infested plots. It performs stubble clearing before sowing, breaks compacted topsoil and incorporates chopped straw back into soil to improve soil fertility.

660mm Heavy‑Gauge Disc Blades‑Replace Plough for Primary Tillage Fitted with large‑size 660mm heavy‑gauge disc blades, this harrow efficiently crushes soil clods and levels ground surface. It can substitute plough for primary tillage on cultivated land, simplifying farming workflows and lowering overall operating costs.

Wide Model Range & Optional Sealed Bearing Assembly Multiple models cover working width from 1800mm to 5300mm, matching tractors from 70 HP up to 180 HP. Optional sealed bearing assembly greatly improves reliability against dust, mud and harsh working environment for extended service life.

Technical Specifications

Model 1BZ‑1.8 1BZ‑2.2 1BZ‑2.5 1BZ‑3.0 1BZ‑3.4 1BZ‑4.0 1BZ‑5.3
Working Width (mm) 1800 2200 2500 3000 3400 4000 5300
Working Depth (mm) 200 200 200 200 200 200 200
Disc Dia. (mm) 660 660 660 660 660 660 660
Disc Qty 16 20 24 28 32 36 48
Weight (kg) 1160 1250 1350 1430 1550 1900 2500
Tractor Power (hp) 70 80 90 100 120 150 180
Items Optional Sealed Bearing Assembly



EXTRA HEAVY DISC HARROW

发表评论

Offset Hydraulic Frame‑Extra Heavy‑Duty Tillage Performance The 1BZLY series hydraulic trailed extra heavy disc harrow is engineered for demanding field conditions including heavy clay soil, wasteland and heavily weed‑infested plots. It performs stubble clearing before sowing, breaks compacted topsoil and incorporates chopped straw back into soil to improve soil fertility.

660mm Heavy‑Gauge Disc Blades‑Replace Plough for Primary Tillage Fitted with large‑size 660mm heavy‑gauge disc blades, this harrow efficiently crushes soil clods and levels ground surface. It can substitute plough for primary tillage on cultivated land, simplifying farming workflows and lowering overall operating costs.

Multiple Model Range & Optional Bearing Assembly Multiple models cover working width from 2000mm to 3400mm, matching tractors from 80 HP up to 140 HP. Optional 38mm round shaft oil bearing assembly or 40mm square shaft grease bearing assembly greatly improves reliability against dust, mud and harsh working environment for extended service life.

Technical Specifications

Model 1BZLY‑2.0 1BZLY‑2.2 1BZLY‑2.5 1BZLY‑Y3.0 1BZLY‑3.4
Working Width (mm) 2000 2200 2500 3000 3400
Working Depth (mm) 180‑220 180‑220 180‑220 180‑220 180‑220
Disc Dia. (mm) 660 660 660 660 660
Disc Qty 18 20 24 28 32
Weight (kg) 1600 1780 1950 2100 2500
Tractor Power (hp) 80 90 110 120 140
Items Optional 38mm Round Shaft With Oil Bearing or 40mm Square Shaft with Grease Bearing

MOUNTED MIDDLE DUTY DISC HARROW

发表评论

Compact Mounted Frame‑Middle‑Duty Tillage Performance The 1BJX series mounted middle‑duty disc harrow is designed for light and medium soil conditions. It completes clod breaking, pre‑sowing land preparation, soil‑fertilizer mixing and stubble removal tasks for general farmland.

560mm Standard Disc Blades‑Simple & Reliable Structure Equipped with 560mm disc blades, this harrow breaks clods efficiently and levels field surface. Featuring simple structure, durable build and easy maintenance, it meets agronomic requirements for fine tillage work.

Wide Model Range & Optional Sealed Bearing Assembly Multiple models cover working width from 1600mm to 2500mm, matching tractors from 30 HP up to 80 HP. Optional sealed bearing assembly improves durability against dust and mud for longer service life.

Technical Specifications

Model 1BJX‑1.6 1BJX‑1.8 1BJX‑2.0 1BJX‑2.2 1BJX‑2.4 1BJX‑2.5
Working Width (mm) 1600 1800 2000 2200 2400 2500
Working Depth (mm) 140 140 140 140 140 140
Disc Dia. (mm) 560 560 560 560 560 560
Disc Qty 14 16 18 20 22 24
Weight (kg) 350 380 420 470 540 650
Tractor Power (hp) 30 40 50 60 70 80
Items Optional Sealed Bearing Assembly

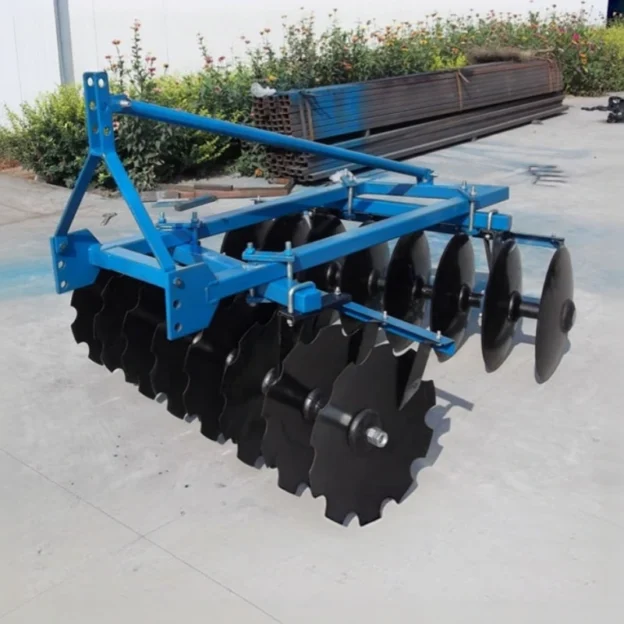

MOUNTED LIGHT DUTY DISC HARROW

发表评论

Compact Mounted Frame‑Light‑Duty Tillage Performance The 1BQX series mounted light‑duty disc harrow fits light soil farm operations. It handles post‑plough clod breaking, pre‑sowing land preparation, soil loosening and soil‑fertilizer mixing for general farmland.

460mm Standard Disc Blades‑Simple & Robust Structure Equipped with 460mm disc blades, this harrow breaks clods efficiently and levels field surface. With rational structure, solid build and easy maintenance, it delivers smooth tillage results for light soil.

Wide Model Range & Two Hitch Categories Multiple models cover working width from 1100mm to 2300mm, matching tractors from 15 HP up to 60 HP. Supports Cat I and Cat II 3‑point mounting to adapt different tractor types.

Technical Specifications

Model 1BQX‑1.1 1BQX‑1.3 1BQX‑1.5 1BQX‑1.7 1BQX‑1.9 1BQX‑2.3
Working Width (mm) 1100 1300 1500 1700 1900 2300
Working Depth (mm) 120 120 120 120 120 120
Disc Dia. (mm) 460 460 460 460 460 460
Disc Qty 12 14 16 18 20 24
Weight (kg) 200 220 240 260 310 360
Tractor Power (hp) 15 18 25 40 50 60
Linkage Mounted Cat I Mounted Cat II

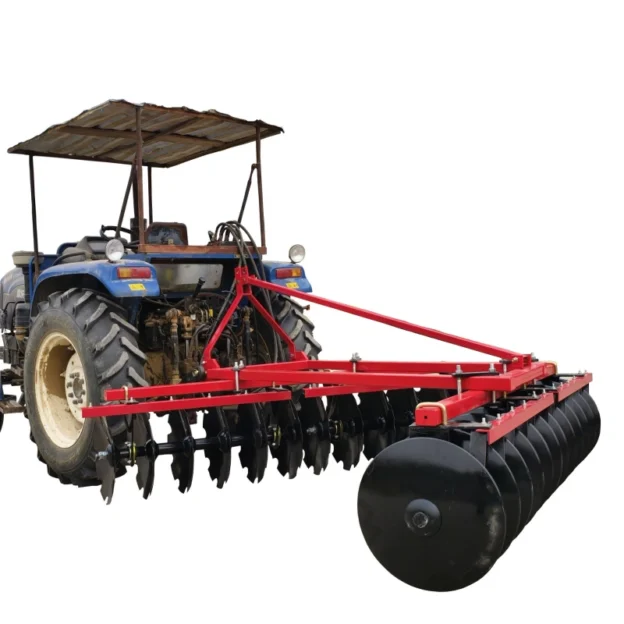

COMPACT MODEL DISC HARROW

发表评论

Dual‑connection Frame‑Compact‑Model Tillage Performance The 1BJX series compact model disc harrow supports both trailed and Cat II mounted connection for tractors. It delivers high working efficiency for clay soil, wasteland and weedy plots.

560/610mm Heavy Disc Blades‑Strong Penetration Performance Equipped with optional 560mm or 610mm disc blades, this harrow breaks clods, loosens soil and levels field surface. It features good power utilization and reliable tillage quality.

Wide Model Range & Dual Hitch Options Multiple models cover working width from 1400mm to 2700mm, matching tractors from 30 HP up to 110 HP. Both trailing and Category II 3‑point mounting are available for flexible field deployment.

Technical Specifications

Model 1BJX‑1.4A 1BJX‑1.6A 1BJX‑1.8A 1BJX‑2.0A 1BJX‑2.3A 1BJX‑2.5A 1BJX‑2.7A
Working Width (mm) 1400 1600 1800 2000 2300 2500 2700
Working Depth (mm) 140 140 140 140 140 140 140
Disc Dia. (mm) 560/610 560/610 560/610 560/610 560/610 560/610 560/610
Disc Qty 12 14 16 18 20 22 24
Weight (kg) 440 490 550 590 620 650 720
Tractor Power (hp) 30 40 50‑60 60‑70 70‑80 80‑100 90‑110
Linkage Mounted Cat II / Trailed

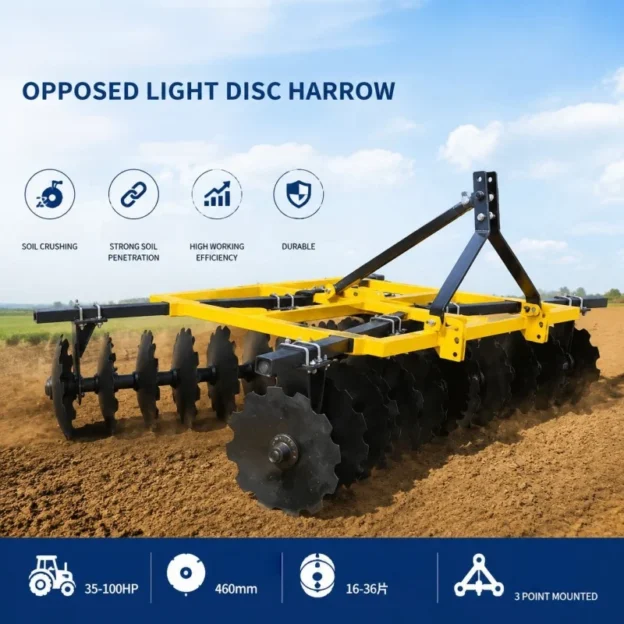

OPPOSED LIGHT DISC HARROW

发表评论

Opposed Frame‑Light‑Duty Tillage Performance The 1BQDX series opposed light disc harrow is designed for pre‑tillage stubble clearing, breaking hardened topsoil, post‑plough clod crushing and field leveling. Opposed disc layout eliminates side‑pull force on the tractor for stable operation.

460mm Standard Disc Blades‑Efficient Soil Preparation Fitted with 460mm disc blades, this harrow delivers strong soil penetration and clod breaking capacity. It achieves high working efficiency and reasonable power consumption for general farmland conditions.

Wide Model Range & Simple Mounted Structure Multiple models cover working width from 1100mm to 2300mm, matching tractors from 15 HP up to 60 HP. Simple 3‑point mounted structure enables quick hookup and convenient daily maintenance.

Technical Specifications

Model 1BQDX‑1.3 1BQDX‑1.6 1BQDX‑2.0 1BQDX‑2.4 1BQDX‑2.8 1BQDX‑3.0
Working Width (mm) 1100 1300 1500 1700 1900 2300
Working Depth (mm) 140 140 140 140 140 140
Disc Dia. (mm) 460 460 460 460 460 460
Disc Qty 12 14 16 18 20 24
Weight (kg) 200 220 240 260 310 360
Tractor Power (hp) 15 18 25 40 50 60
Linkage Mounted

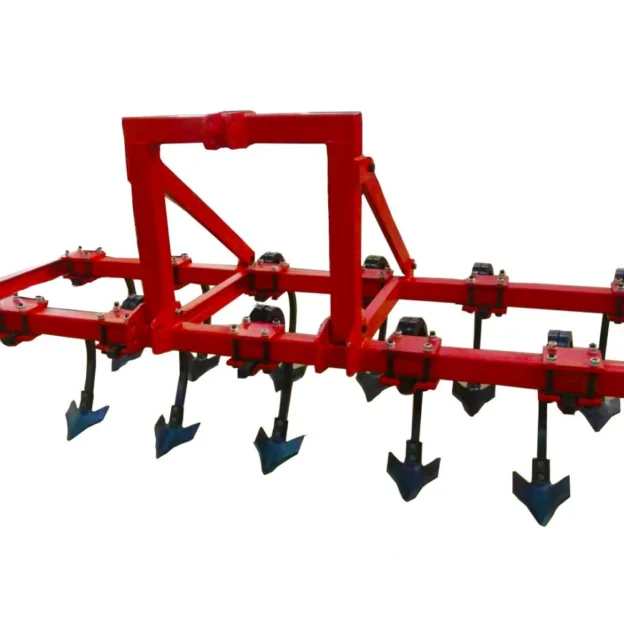

3ZP Series Spring Cultivator | Tractor Mounted Row Crop Cultivator

发表评论

3ZP series spring‑loaded cultivator features double‑spring tension device. When working tines hit underground obstacles, they bounce automatically and quickly return to working position for shank protection. Different arm combinations are selectable. Suitable for inter‑row tillage and soil loosening for corn, cotton, beans and other row crops. Straight chisel points and wing furrower are available as optional parts for varied field working demands.

Technical Specifications

Item 3ZP‑5 3ZP‑7 3ZP‑9 3ZP‑11
Model 3ZP‑5 3ZP‑7 3ZP‑9 3ZP‑11
Tines Qty 5 pcs 7 pcs 9 pcs 11 pcs
Type of arms Straight 2 curved 3 Straight 3 curved 4 Straight 4 curved 5 Straight 5 curved 6
Working Width 2.5 m 2.5 m 3 m 3 m
Total Weight 400 kg 500 kg 550 kg 600 kg
Matching Tractor Power 70 HP 80‑90 HP 85‑100 HP 85‑100 HP
Optional Items Straight Chisel Points or Wing Furrower available

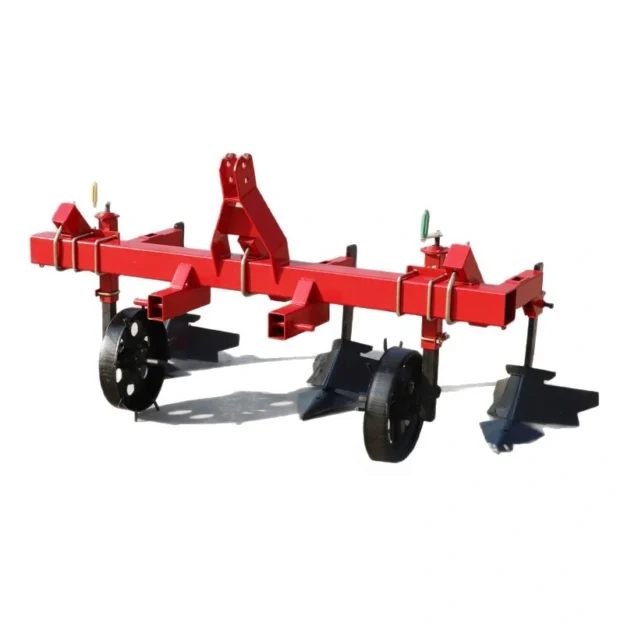

3Z Series Cultivator | Multi‑Function Tractor Mounted Inter‑Row Cultivator

发表评论

3Z series tractor‑mounted cultivator is designed for inter‑row field work for corn, soybean, cotton, potato and similar crops. It realizes multiple tasks including inter‑cultivation, subsoiling, ditching and ridging in one pass. Row spacing, working depth and ridging width can be adjusted conveniently, suitable for various small‑and‑medium farmland conditions.

Technical Specifications

Item 3Z‑2 3Z‑3 3Z‑4 3Z‑5
Model 3Z‑2 3Z‑3 3Z‑4 3Z‑5
Working Width 1100 mm 1900 mm 2900 mm 3700 mm
Working Depth 100‑200 mm 100‑200 mm 100‑200 mm 100‑200 mm
Tine Qty 2 pcs 3 pcs 4 pcs 5 pcs
Ridging Rows 1 2 3 4
Total Weight 90 kg 120 kg 150 kg 190 kg
Matching Tractor Power 18 HP 20‑30 HP 40‑50 HP 70‑80 HP
Linkage Mounted CAT I Mounted CAT I Mounted CAT I Mounted CAT I

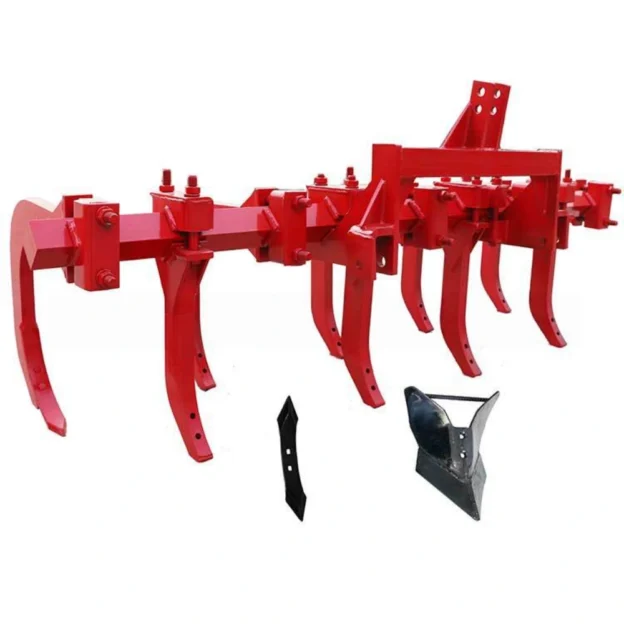

3ZT‑A Series Double Coil Cultivator | Tractor 3‑Point Mounted Field Cultivator

发表评论

3ZT‑A double coil cultivator is engineered for foreign market demands. Its optimized structure prevents tines from trapping crop residues and weeds in field operation. The heavy‑duty tines absorb shock load and resist deformation under various soil conditions. It performs deep loosening and inter‑row cultivation, suitable for large farmland matched with medium‑high horsepower tractors.

Technical Specifications

Item 3ZT‑9A 3ZT‑11A 3ZT‑13A 3ZT‑15A
Model 3ZT‑9A 3ZT‑11A 3ZT‑13A 3ZT‑15A
Tine Qty 9 pcs 11 pcs 13 pcs 15 pcs
Working Width 2000 mm 2500 mm 3000 mm 3500 mm
Working Depth 350 mm 350 mm 350 mm 350 mm
Total Weight 375 kg 460 kg 540 kg 625 kg
Matching Tractor Power 40‑60 HP 60‑80 HP 80‑100 HP 100‑120 HP
Linkage Type 3‑Point Mounted 3‑Point Mounted 3‑Point Mounted 3‑Point Mounted
