OPPOSED LIGHT DISC HARROW

发表评论

Opposed Frame‑Light‑Duty Tillage Performance The 1BQDX series opposed light disc harrow is designed for pre‑tillage stubble clearing, breaking hardened topsoil, post‑plough clod crushing and field leveling. Opposed disc layout eliminates side‑pull force on the tractor for stable operation.

460mm Standard Disc Blades‑Efficient Soil Preparation Fitted with 460mm disc blades, this harrow delivers strong soil penetration and clod breaking capacity. It achieves high working efficiency and reasonable power consumption for general farmland conditions.

Wide Model Range & Simple Mounted Structure Multiple models cover working width from 1100mm to 2300mm, matching tractors from 15 HP up to 60 HP. Simple 3‑point mounted structure enables quick hookup and convenient daily maintenance.

Technical Specifications

Model 1BQDX‑1.3 1BQDX‑1.6 1BQDX‑2.0 1BQDX‑2.4 1BQDX‑2.8 1BQDX‑3.0
Working Width (mm) 1100 1300 1500 1700 1900 2300
Working Depth (mm) 140 140 140 140 140 140
Disc Dia. (mm) 460 460 460 460 460 460
Disc Qty 12 14 16 18 20 24
Weight (kg) 200 220 240 260 310 360
Tractor Power (hp) 15 18 25 40 50 60
Linkage Mounted

3ZP Series Spring Cultivator | Tractor Mounted Row Crop Cultivator

发表评论

3ZP series spring‑loaded cultivator features double‑spring tension device. When working tines hit underground obstacles, they bounce automatically and quickly return to working position for shank protection. Different arm combinations are selectable. Suitable for inter‑row tillage and soil loosening for corn, cotton, beans and other row crops. Straight chisel points and wing furrower are available as optional parts for varied field working demands.

Technical Specifications

Item 3ZP‑5 3ZP‑7 3ZP‑9 3ZP‑11
Model 3ZP‑5 3ZP‑7 3ZP‑9 3ZP‑11
Tines Qty 5 pcs 7 pcs 9 pcs 11 pcs
Type of arms Straight 2 curved 3 Straight 3 curved 4 Straight 4 curved 5 Straight 5 curved 6
Working Width 2.5 m 2.5 m 3 m 3 m
Total Weight 400 kg 500 kg 550 kg 600 kg
Matching Tractor Power 70 HP 80‑90 HP 85‑100 HP 85‑100 HP
Optional Items Straight Chisel Points or Wing Furrower available

3Z Series Cultivator | Multi‑Function Tractor Mounted Inter‑Row Cultivator

发表评论

3Z series tractor‑mounted cultivator is designed for inter‑row field work for corn, soybean, cotton, potato and similar crops. It realizes multiple tasks including inter‑cultivation, subsoiling, ditching and ridging in one pass. Row spacing, working depth and ridging width can be adjusted conveniently, suitable for various small‑and‑medium farmland conditions.

Technical Specifications

Item 3Z‑2 3Z‑3 3Z‑4 3Z‑5
Model 3Z‑2 3Z‑3 3Z‑4 3Z‑5
Working Width 1100 mm 1900 mm 2900 mm 3700 mm
Working Depth 100‑200 mm 100‑200 mm 100‑200 mm 100‑200 mm
Tine Qty 2 pcs 3 pcs 4 pcs 5 pcs
Ridging Rows 1 2 3 4
Total Weight 90 kg 120 kg 150 kg 190 kg
Matching Tractor Power 18 HP 20‑30 HP 40‑50 HP 70‑80 HP
Linkage Mounted CAT I Mounted CAT I Mounted CAT I Mounted CAT I

3ZT‑A Series Double Coil Cultivator | Tractor 3‑Point Mounted Field Cultivator

发表评论

3ZT‑A double coil cultivator is engineered for foreign market demands. Its optimized structure prevents tines from trapping crop residues and weeds in field operation. The heavy‑duty tines absorb shock load and resist deformation under various soil conditions. It performs deep loosening and inter‑row cultivation, suitable for large farmland matched with medium‑high horsepower tractors.

Technical Specifications

Item 3ZT‑9A 3ZT‑11A 3ZT‑13A 3ZT‑15A
Model 3ZT‑9A 3ZT‑11A 3ZT‑13A 3ZT‑15A
Tine Qty 9 pcs 11 pcs 13 pcs 15 pcs
Working Width 2000 mm 2500 mm 3000 mm 3500 mm
Working Depth 350 mm 350 mm 350 mm 350 mm
Total Weight 375 kg 460 kg 540 kg 625 kg
Matching Tractor Power 40‑60 HP 60‑80 HP 80‑100 HP 100‑120 HP
Linkage Type 3‑Point Mounted 3‑Point Mounted 3‑Point Mounted 3‑Point Mounted

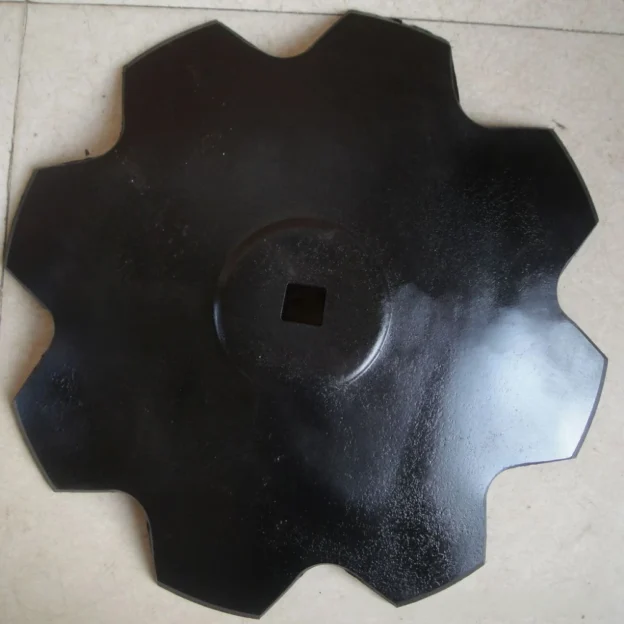

Disc Blade | Plow & Harrow Replacement Disc Blades for Farm Tillage

发表评论

These disc blades are critical wear‑resistant spare parts for disc plows and disc harrows. Complete manufacturing processes including forging, precision machining and strict heat‑treatment guarantee hardness and wear resistance. Multiple sizes, round / notched disc types are available. Custom dimensions, hole patterns and surface finishes can be produced to match different farm implements.

Technical Specifications

Diameter Thickness(mm) Approx. Weight(kg) Diameter Thickness(mm) Approx. Weight(kg) Diameter Thickness(mm) Approx. Weight(kg)
12″/305mm 2 1.04 18″/460mm 3.5 4.14 24″/610mm 4.5 10.32
2.5 1.28 4 4.77 5 11.38
3 1.59 4.5 5.39 6 13.54
4 1.90 5 5.93 7 15.80
5 2.40 6 7.05 8 18.00
14″/355mm 3 2.03 20″/510mm 3.5 5.39 26″/660mm 5 13.83
3.5 2.36 4 6.18 6 16.63
4 2.71 4.5 6.96 7 19.39
4.5 3.05 5 7.65 8 22.13
15″/381mm 5 3.36 6 9.08
16″/406mm 4 3.48 22″/560mm 4 7.65 28″/710mm 6 19.53
3 2.86 4.5 8.62 7 22.79
3.5 3.32 5 9.49 8 26.01
4.5 3.82 6 11.28 30″/760mm 6 22.15
5 4.74 3.5 4.14 8 29.53
34″/864mm 12 54.50 18″/460mm 4 4.77 32″/810mm 8 34.22
36″/910mm 12 63.40 10 42.15

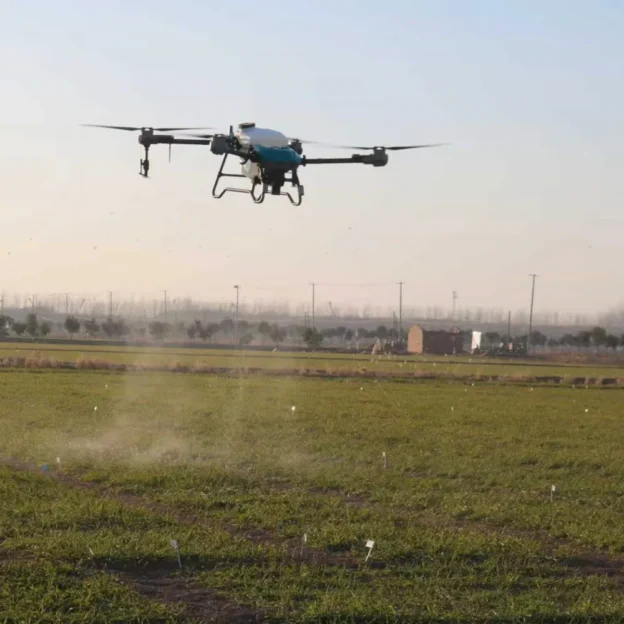

JT‑80 Agricultural Drone | 70L Spray & 100L Spreading Large‑Capacity Farming UAV

发表评论

Product Overview

The JT‑80 agricultural drone is a full‑scale upgraded large‑capacity farming UAV built for heavy‑duty agricultural work. It integrates spray and spreading functions. The spray system delivers up to 40L/min maximum flow rate, while the winch‑type spreading system supports peak spreading capacity up to 300 KG per minute for dry solid particles from 0.5 mm to 10 mm.

Power & Energy System
It is fitted with 62‑inch high‑strength carbon‑fiber paddles, resistant to deformation. Vehicle‑grade flat‑wire motors provide stable temperature rise and high‑efficiency power output. Matched with 350A high‑power ESC for fast control‑signal response. The 18S 30000 mAh smart battery adopts grille‑style heat‑dissipation structure. Real‑time airflow cooling keeps battery temperature stable during flight. VoltSmart 4.6 smart charger with built‑in high‑speed fan realizes instant heat dissipation.

Sensing & Remote‑Control System
Airpilot 3.5 multifunctional remote controller carries a 6‑inch high‑bright display. Customizable function buttons are supported. Built‑in battery plus two expandable external batteries offer up to 9‑hours continuous working time. Virtual gimbal 120° ultra‑wide‑angle FPV lens provides adjustable viewing‑angle screen output. Dual 75W high‑bright searchlights guarantee clear vision for night‑time operation. Brand‑new digital transmission supports stable 2KM image transmission; it will auto switch to 4G mode under poor‑signal conditions to keep flight safety. The multi‑radar matrix constructs full‑space 3D omnidirectional perception, with maximum sensing distance of 70 meters, bringing outstanding obstacle‑avoidance and terrain‑following performance.

Avionics5.0 Flight Control & Software Functions
Avionics5.0 avionics platform adopts multi‑dimensional redundant hardware including dual IMU, dual GNSS and dual barometer, reaching P67 protection level. Rich autonomous‑operation functions are available: one‑key edge‑sweeping, one‑sided spraying, intelligent continue‑operation, spray‑empty prediction, multi‑plot operation, circular‑route operation, prescription‑map‑driven precision operation and more, greatly improving farming operation accuracy and automation level.

Multiple optional components including RTK mobile station, generator, four‑nozzle kit and spread‑tank assembly can be configured according to actual farm‑work demands.

Technical Specifications

Item JT‑80 Agricultural Drone
Model JT‑80
Arm unfolded size 3305*3577*850mm
Arm folded size 1270*880*880mm
Spray Tank Capacity 70L
Spreading Tank Capacity(Optional) 100L
Maximum spray width 12m (altitude 3.5m ± 0.5m, speed 5 m/s)
Atomization size Centrifugal nozzle 50um~500um
Pump type Magnetic impeller pump *2
Max spray flow Two nozzles 30L/min; four nozzles 40L/min
Max spreading output 300KG/Min
Spreading feeding method Auger feeding
Applicable spreading material 0.5~10mm dry solid particles
Max speed 13.8M/S
Image transmission distance 2KM, auto switch to 4G
Radar sensing distance Max 70m, 3D Omni‑directional multi‑radar matrix
ESC 350A High‑Power ESC
Battery 18S 30000mah smart battery
Protection level P67
Remote Controller Airpilot 3.5 multifunction remote control
Optional Equipment RTK mobile station, Generator, 4‑nozzle kit, Spread tank

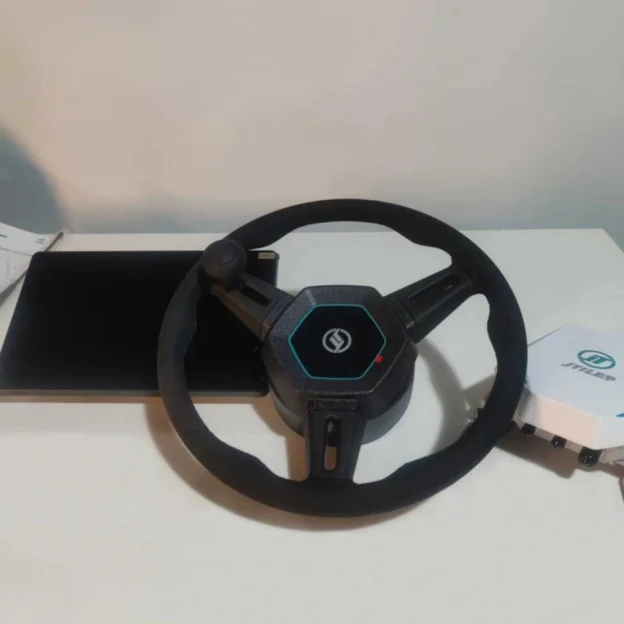

HD818 BeiDou Agricultural Machinery Autonomous Driving System | Tractor Auto‑Steering Kit

发表评论

HD818 BeiDou‑based agricultural machinery autonomous driving system is a full‑set retrofit auto‑steering kit for most common tractors and farm working machines. The complete set includes electric steering motor wheel, 14‑inch vehicle‑mount navigation terminal and high‑precision multi‑constellation GNSS receiver. It realizes centimeter‑level automatic driving for farming jobs including plowing, seeding, spraying and land‑leveling.

Six Major Product Innovations

  • 14‑inch Panoramic High‑Bright Screen‑14‑inch LCD display with 800‑nit brightness and anti‑glare coating, clear view under strong sunlight.
  • Visual Navigation‑Upgradable visual navigation module recognizes seedling rows for automatic route planning, reduces crop damage and expands application scenarios.
  • Vectoris Pro Navigation Software‑Dual‑main‑screen split‑screen multitasking design, simplifies farm operation and management.
  • Ergonomic Electric Steering Wheel‑Leather‑texture steering wheel; optional steering spinner, control lever & custom function buttons for comfortable operation.
  • AI Voice Agent‑Multilingual voice interaction, fault diagnosis and Q&A function.
  • Huida Digital Agriculture Platform‑Platform‑level cloud service for data interconnection, process management, task collaboration and fleet management.

The system supports rich extended functions: ISOBUS implement connection, intelligent spraying control, land leveling, implement‑oriented navigation, 360° surround‑view monitoring and tactile whisker navigation. Multiple optional sensors and cameras can be configured according to actual field requirements. Complete installation guidance and technical support are provided for customers.

Technical Specifications

Electric Steering Motor Wheel

Item Parameter
Rated Output Torque 7 N·m
Max Output Torque 15 N·m
Rated Power 50 W
Working Voltage 9‑18 V DC
Ingress Protection IP65

Vehicle‑mounted Navigation Terminal

Item Parameter
Screen Size 14″ LCD,1920*1080,800 nits
System Android 14.0, 8‑Core CPU,8GB+64GB
Communication 2.4G+5G Wi‑Fi,4G Global,BT5.0
Protection Grade IP67
Input Voltage 9‑36 V DC

GNSS RTK Receiver

Item Parameter
Supported Satellite Signal BDS‑2 / BDS‑3 multi‑frequency
RTK Horizontal Accuracy 10 mm
DGNSS Accuracy ＜0.4 m(RMS)
Single‑point Accuracy ＜1.5 m(RMS)
Radio Communication LoRa 410‑430MHz
Protection Grade IP67

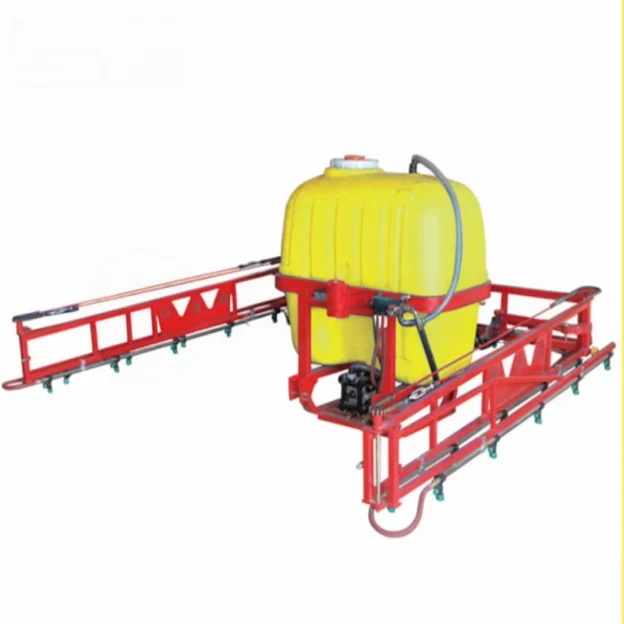

3W Series 3‑Point Mounted Rod Sprayer | Tractor PTO Boom Sprayer

发表评论

3W series hanging boom sprayer connects to tractors via standard three‑point hitch, driven by tractor PTO shaft. The pipeline adopts special anti‑corrosion material to resist chemical liquid erosion. Adopts double‑cylinder diaphragm pump to maintain stable working pressure. Spray boom height can be adjusted on demand for different crop heights.

Mainly used for pesticide spraying, foliar fertilization and herbicide weeding in farmland. Multiple specifications from 200L up to 1000L are available, matching tractors from 20HP‑110HP. German‑origin spray nozzles ensure uniform atomization and long service life.

Technical Specifications

Model Tank Capacity(L) Spray Width(m) Nozzle Qty Matching Power(HP) Weight(KG) Pump Model
3W‑200 200 6 12 20‑30 210 MB80
3W‑300 300 6 12 30‑40 225 MB80
3W‑400 400 6 12 40‑50 240 MB80
3W‑500 500 10 20 50‑55 260 MB80
3W‑700 700 10 20 60‑75 290 MB90
3W‑800 800 10 20 75‑80 310 MB90
3W‑1000 1000 10 20 80‑100 330 MB4115
3W‑500 500 12 24 55‑60 270 MB90
3W‑700 700 12 24 60‑75 300 MB90
3W‑800 800 12 24 80‑90 320 MB90
3W‑1000 1000 12 24 80‑100 340 MB4115
3W‑1000 1000 14 28 80‑100 350 MB4115
3W‑1000 1000 16 32 90‑110 360 MB4115

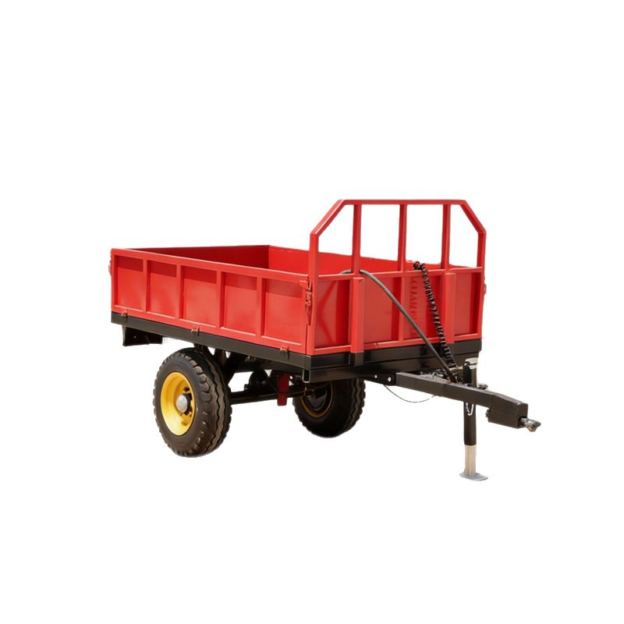

AGRICULTURAL TRAILERS

发表评论

This series of agricultural trailers are tractor‑towed transport equipment, available in non‑tipping and hydraulic dumping versions. Built with solid robust frame, they safely carry bulk goods across plains, mountains, wetlands and highways for farm transportation tasks.

Technical Specifications

Model Box Size(mm) Load(kg) Tyre Model/Qty Tipping Weight(kg) Tractor Power(hp)
7C‑1.5 2000X1000X400 1500 6.50‑16/2 No Tipping 300 12‑25hp
7CX‑1.5 2000X1000X400 1500 6.50‑16/2 Rear Tipping 350 12‑25hp
7C‑2 2400X1200X400 2000 6.50‑16/2 No Tipping 360 12‑25HP
7CX‑2 2400X1200X400 2000 6.50‑16/2 Rear Tipping 420 12‑25HP
7CX‑2E 2500X1500X450 2000 10.0/75‑15.3 Rear Tipping 600 12‑25hp
7C‑2.5 2500X1500X450 2500 7.50‑16/2 No Tipping 460 18‑30HP
7CX‑2.5 2500X1500X450 2500 7.50‑16/2 Rear Tipping 580 18‑30HP
7C‑3 3000X1600X450 3000 7.50‑16/2 No Tipping 500 25‑40HP
7CX‑3 3000X1600X450 3000 7.50‑16/2 Rear Tipping 650 25‑40HP
7C‑3 3400X1700X450 3000 7.50‑16/2 No Tipping 600 25‑40HP
7CX‑3 3400X1700X450 3000 7.50‑16/2 Rear Tipping 750 25‑40HP
7C‑4 3800X1700X450 4000 7.50‑16/4 No Tipping 1150 35‑40HP
7CX‑4 3800X1700X450 4000 7.50‑16/4 Side Tipping 1450 35‑40HP
7C‑5 4000X2100X550 5000 8.25‑16/4 No Tipping 1260 40‑60HP
7CX‑5 4000X2100X550 5000 8.25‑16/4 Side Tipping 1610 40‑60HP
7CX‑5E 3700X1900X(460+460) 5000 400/60‑15.5/2 Rear Tipping 1400 40‑60
7C‑6 4500X2100X550 6000 8.25‑16/4 No Tipping 1400 50‑90HP
7CX‑6 4500X2100X550 6000 8.25‑16/4 Side Tipping 1900 50‑90HP
7C‑8 5500X2100X550 8000 9.00‑16/4 No Tipping 2050 60‑100HP
7CX‑8 5500X2100X550 8000 9.00‑16/4 Side Tipping 2600 60‑100HP
7CX‑8E 4100x2100X(550+550) 8000 11.5/80‑15.3/4 Three‑way Tipping 3500 60‑100HP
7C‑10 6000x2100X550 10000 8.25‑16/8 No Tipping 2700 80‑120
