XJ Series Agricultural Drone | 22L Intelligent Crop Spraying UAV

发表评论

The XJ Series Agricultural Drone is built for efficient plant protection and farm spraying operations. It adopts a six-rotor layout and foldable design, which helps reduce storage space and improves transportation convenience between fields. The 22L spray tank allows continuous operation over large areas, while the adjustable spraying flow helps meet different crop protection needs.

Equipped with intelligent flight control, the drone can perform both automatic and manual spraying missions. It is suitable for pesticide spraying, foliar fertilization, and herbicide application in various farmland scenarios. The working speed, spray width, and spraying flow can be adjusted according to crop height, field size, and operation requirements.

The XJ-10 model supports one-key takeoff and landing, automatic route planning, and real-time operation monitoring. With a maximum control range of 1km and a spray width of 7m, it can cover field areas efficiently and reduce manual spraying intensity.

Technical Specifications

Item XJ-10 Agricultural Drone
Model XJ-10
Tank Capacity 22L
Folding Size 800×800×580mm
Unfolding Size 1650×1650×660mm
Net Weight 14.6KG
Max Take-off Weight 48KG
Working Temperature 0-45°C
Operation Speed 0-10 m/min
Spray Width 7m
Spraying Flow 0.8-2L/min
Max Flight Time 23min
Charging Time 25-30min
Working Altitude ≤2500m
Control Range 1km
Operation Mode Automatic / Manual
Control System Mobile APP or Pad

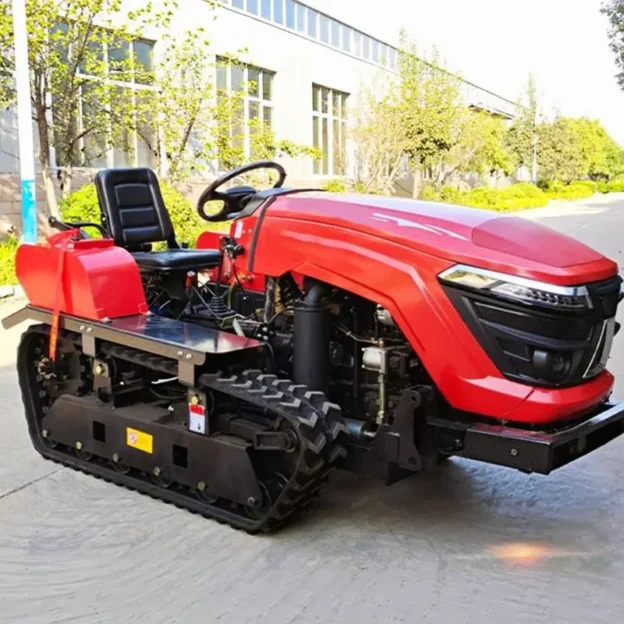

Crawler Tractor

发表评论

This crawler tractor is powered by Kubota diesel engine, ranging from 12‑30HP. Equipped with engineering rubber track, it supports multiple standard attachments for rotary tillage, weeding, ditching, backfilling and bulldozing for various farm operations.

Technical Specifications

Dimensions 1980 × 1020 × 1250mm
Fuel consumption 1L/acre
Diesel engine brand Kubota
Walking speed 5‑15km/h
Horsepower 12‑30HP
Engine speed 2200r/min
Gear Three forward and one reverse gears, high and low speeds
Whole machine weight 780kg
Rotary tiller size 500 × 1200mm(length × width)
Rear output mode Double row chain drive
Weeding machine size 400 × 1000mm(length × width)
Working speed 1‑2 acres per hour
Backfilling machine size 400 × 1200mm(length × width)
Track Engineering rubber track
Trench machine size 600 × 600mm(depth × width)
Standard accessories rotary tiller,weeding,backfilling,trenching,bulldozer shovel
Bulldozer blade size 400 × 1200mm(length × width)

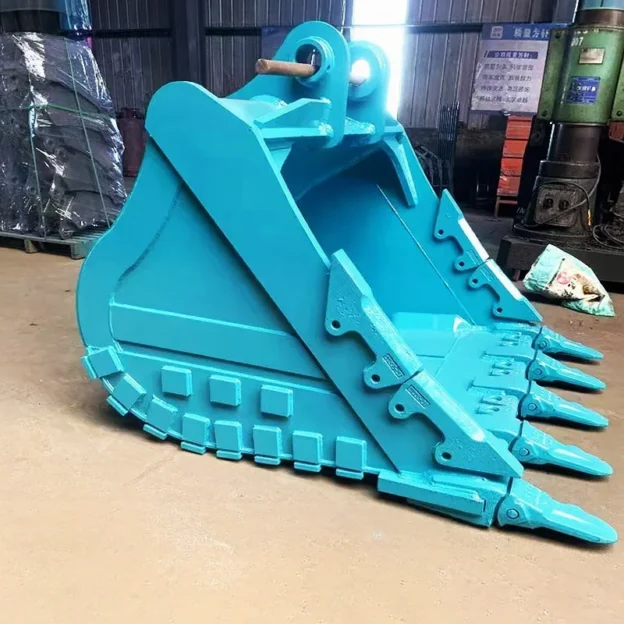

Tractor Bucket

发表评论

This tractor bucket is a practical loader attachment, made of high‑strength wear‑resistant steel. It quickly connects to tractor front‑end loader, widely used for handling soil, gravel, farm bulk goods for agriculture and farmyard work.

Technical Specifications

Product Name Tractor Bucket
Main Material High‑strength wear‑resistant steel
Fitment Tractor front‑end loader
Core Function Load & transport bulk materials
Advantage Simple mounting, durable structure
Applicable Scene Farm, yard, material handling

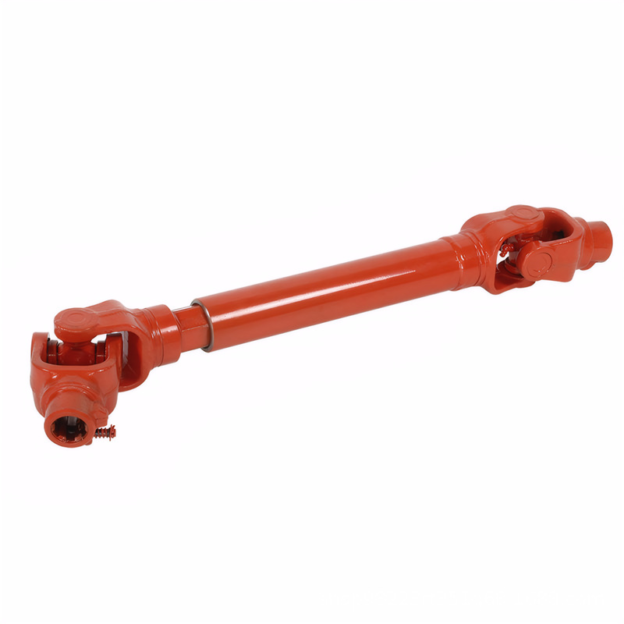

PTO Shaft & 3‑Point Quick Hitch

发表评论

PTO shaft transfers power from tractor PTO output to driven farm tools. The 3‑point quick hitch enables fast mounting and dismounting of tillers, harrows and other implements without manual heavy lifting. Made of heavy‑duty alloy steel for long‑term field use.

Technical Specifications

Product Name PTO Shaft & 3‑Point Quick Hitch
Main Material High‑strength alloy steel
PTO Shaft Function Power transmission for agricultural implements
Quick Hitch Function Rapid connect/disconnect 3‑point mounted tools
Advantage Save hookup time, sturdy construction
Compatibility Standard category tractor 3‑point implements

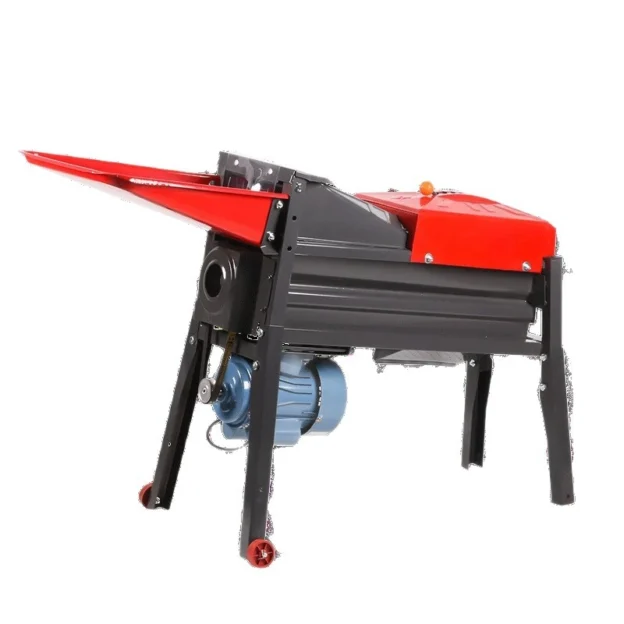

Single‑Barrel Corn Thresher

发表评论

This single‑barrel corn thresher is compact household farm equipment. Adopting single‑barrel threshing structure, it separates corn kernels from cobs with low breakage rate. Simple‑structured, easy to operate and maintain, ideal for small‑scale corn threshing work.

Technical Specifications

Product Name Single‑Barrel Corn Thresher
Main Material Thickened carbon steel
Core Function Corn cob kernel removing
Key Advantage Low grain breakage, compact size
Applicable Scene Household & small farm

AGRICULTURAL WATER PUMPS

发表评论

The WP series agricultural water pump is 3‑point mounted for various tractors. It performs high‑efficiency water delivery for farm irrigation, field drainage and drought‑relief projects. Multiple flow rates are selectable for different working demands.

Technical Specifications

Model Flow Rate(m³/h) Head(m) Total Weight(kg) PTO Speed(r/min) Tractor Power(hp)
WP‑30 30 20 85 540‑720 25
WP‑40 40 30 110 540‑720 30
WP‑50 50 40 140 540‑720 45
WP‑60 60 50 175 540‑720 50
WP‑80 80 65 210 540‑720 75
WP‑100 100 80 260 540‑720 100

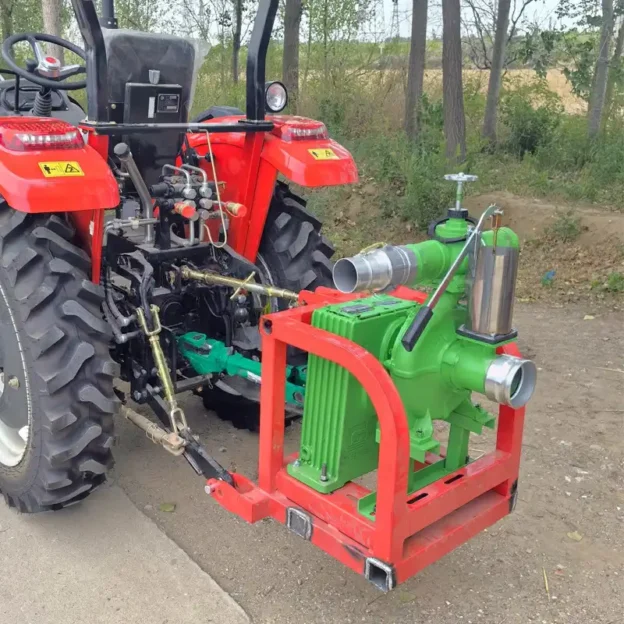

TRACTOR‑DRIVEN PTO WATER PUMPS

发表评论

3‑Point Mounted Structure & Simple Installation The PWP series PTO water pump adopts standard 3‑point linkage design for various tractors. Quick connection without extra modification, convenient for on‑site assembly and disassembly, adapts to different farm operation scenarios.

High‑Efficiency Water Delivery & Stable PTO Power Input Driven by tractor PTO shaft, it delivers steady large‑volume water flow. Excellent for farm irrigation, water transfer, field drainage and drought relief projects. Reliable performance under long‑time continuous working conditions.

Cost‑Effective & Multiple‑Model Options Compared with independent engine water pumps, this PTO‑driven pump saves extra fuel cost. Multiple flow rate models are selectable to match different tractor horsepower, ideal for farmers and agricultural enterprises for irrigation projects.

Technical Specifications

Model Flow Rate(m³/h) Total Head(m) Total Weight(kg) PTO Speed(r/min) Tractor Power(hp)
PWP‑30 30 20 90 540‑720 25
PWP‑40 40 30 120 540‑720 30
PWP‑50 50 40 150 540‑720 45
PWP‑60 60 50 185 540‑720 50
PWP‑80 80 65 225 540‑720 75
PWP‑100 100 80 270 540‑720 100

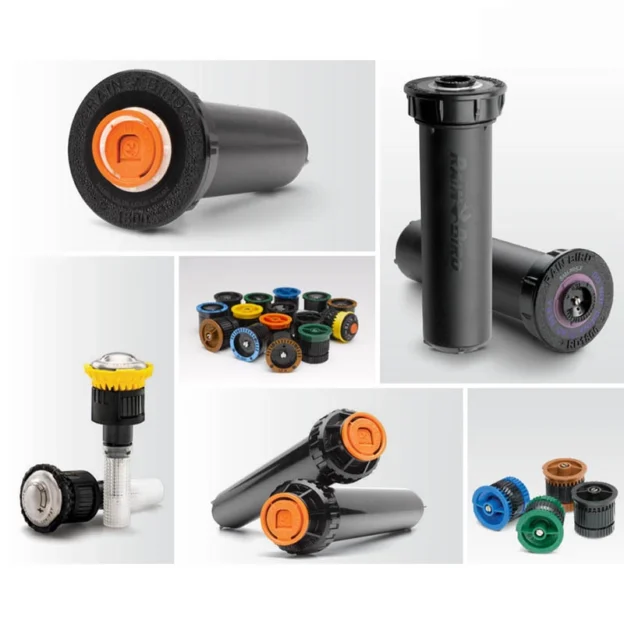

POP‑UP SCATTER SPRINKLER

发表评论

Heavy‑Duty Pop‑Up Housing & Anti‑Clogging Structure The pop‑up scatter sprinkler adopts high‑quality engineering plastic housing. The retractable pop‑up stem sinks below ground when not working, avoiding damage from mowers and pedestrians. The filter nozzle design effectively prevents sand and debris clogging for long‑term stable operation.

Interchangeable Nozzles & Flexible Spray Performance Equipped with multiple replaceable color‑coded nozzles, supporting full‑circle, half‑circle and sector spray patterns. Users can adjust spray radius and angle on site, delivering even water distribution for landscape irrigation.

Cost‑Effective & Wide Application Range Compared with premium international brands, this pop‑up sprinkler provides reliable performance with competitive pricing. Suitable for lawns, parks, residential communities and green belts, ideal for landscape contractors and garden irrigation projects.

Technical Specifications

Model Spray Radius(m) Working Pressure(bar) Flow Rate(m³/h) Pop‑up Height(mm) Total Height(mm)
PS‑04 2.5 1.5 0.12 50 100
PS‑06 4.0 2.0 0.30 50 120
PS‑08 6.0 2.2 0.55 75 140
PS‑10 7.5 2.5 0.85 75 160
PS‑12 9.0 3.0 1.30 100 175
PS‑15 10.5 3.5 1.80 100 190
